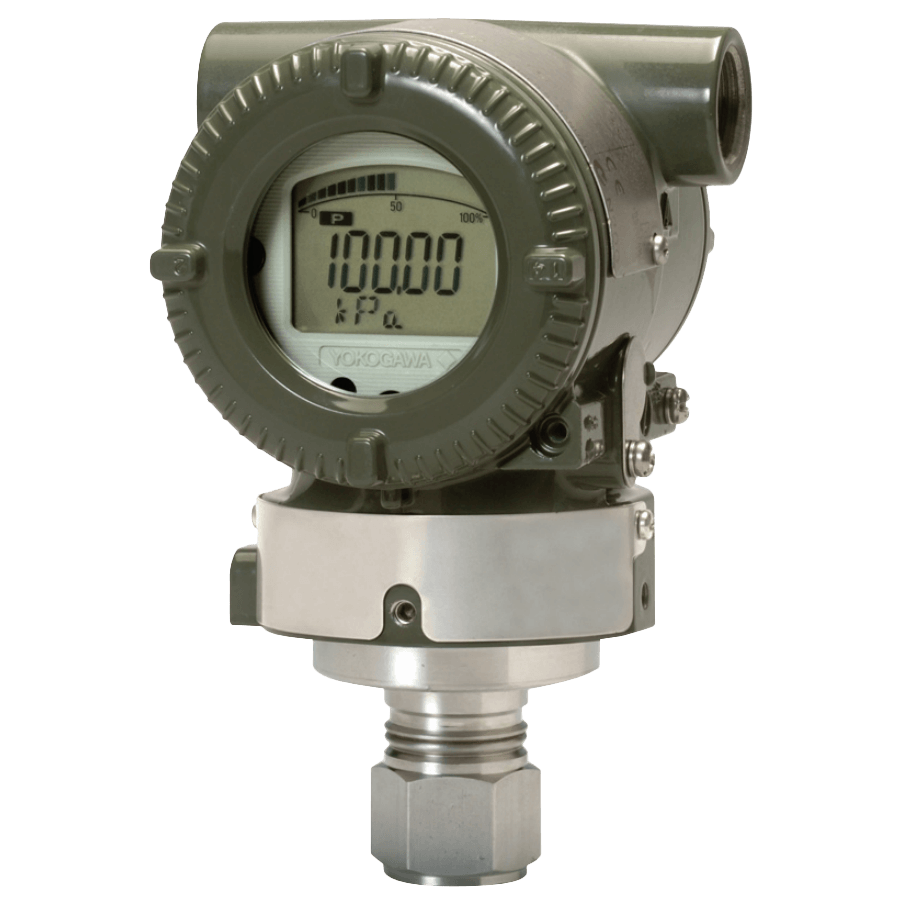

Yokogawa In-Line Gauge Pressure Transmitter, EJA530E
Images are representations only.

EJA530E In-Line Gauge Pressure Transmitter

Brand: Yokogawa

The high performance absolute and gauge pressure transmitter EJA510E and EJA530E feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

EJA510E and EJA530E output a 4 to 20 mA DC signal corresponding to the measured pressure. It also features quick response, remote setup and monitoring via BRAIN or HART communications and selfdiagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 Vdc with HART (Low Power) protocol types are also available.

All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
Features
  • Accuracy: ±0.055% of Span
  • Response Time: 90 msec
  • Stability: ±0.1% of URL per 10 years

Specifications

Brand

BSP Connection

  • G 1/2" Male

O-Ring Material

  • Buna-N - Cover O-Ring
  • Fluororubber - Cover O-Rings

Damping Adjustment

  • 0 to 100 seconds

Output Signal

  • 4-20 mA DC (2-Wire) Output with Digital Communications
  • 1-5 Vdc (3 or 4-Wire) Output with HART

Output

  • 0.9-5.4 Vdc
  • 3.6-21.6 mA
  • 3.8-20.5 mA

Rotation

  • 90°

Mounting

  • 2" (50.8 mm) Pipe Mounting

Enclosure, Body Material

  • ASTM CF-8M Stainless Steel
  • Low Copper Cast Aluminum Alloy

Wetted Materials

  • 316L Stainless Steel
  • Hastelloy® C-276

Operating Temperature

  • -20° to 80° C (-4° to 176° F)

Zero Offset

  • External Zero is Continuously Adjustable with 0.01% Incremental Resolution of Span

Dead Time

  • 45 milliseconds (Nominal)

Approvals & Certifications

  • Leak Test
  • Material Certificate
  • Pressure Test
  • SIL 2 Capability for Single Transmitter Use, SIL 3 Capability for Dual Transmitter Use, IEC 61508: 2000

Diaphragm Material

  • Hastelloy® C-276

Ambient Temperature Range

  • -30° to 80° C (-22° to 176° F) with LCD Display
  • -40° to 85° C (-40° to 185° F)

Response Time

  • 90 milliseconds

Load

  • 0 to 1,290 ohms - for Operation - for 4-20 mA HART/BRAIN
  • 0.22 µF or less - Load Capacitance
  • 250 to 600 ohms for Digital Communication - for 4-20 mA HART/BRAIN
  • 3.3 MH or less - Load Inductance

Distance

  • 0 to 2 Kilometers (1.25 Miles) when Using CEV - Communication Distance

Humidity

  • 0 to 100% Relative Humidity - Ambient

Stability

  • ± 0.1% of URL for 10-Years

Power Supply Effect

  • ± 0.005% Per Volt (21.6-32 Vdc, 350 ohms)

Accuracy

  • ± (0.004 URL/Span)% of Span for High Accuracy (Includes the Effects of Terminal-Based Linearity, Hysteresis & Repeatability) - for Capsule A
  • ± (0.005 + 0.0035 URL/Span)% of Span for High Accuracy (Includes the Effects of Terminal-Based Linearity, Hysteresis & Repeatability) - for Capsule B & D
  • ± (0.0055 URL/Span)% of Span (Includes the Effects of Terminal-Based Linearity, Hysteresis & Repeatability) - for Capsule A, B & C
  • ± (0.0064 x 50 MPa/Span)% of Span for High Accuracy (Includes the Effects of Terminal-Based Linearity, Hysteresis & Repeatability) - for Capsule D
  • ± (0.0088 x 50 MPa/Span)% of Span (Includes the Effects of Terminal-Based Linearity, Hysteresis & Repeatability) - for Capsule D
  • ± 0.04% of Span for High Accuracy (Includes the Effects of Terminal-Based Linearity, Hysteresis & Repeatability)
  • ± 0.055% of Span (Includes the Effects of Terminal-Based Linearity, Hysteresis & Repeatability)

Alarm

  • Down-Scale: -5%, 0.8 Vdc or less - for 1-5 V HART
  • Down-Scale: -5%, 3.2 mA DC or less - for 4-20 mA HART/BRAIN
  • Up-scale: 110%, 21.6 mA DC or more (Standard) - for 4-20 mA HART/BRAIN
  • Up-scale: 110%, 5.4 Vdc or more (Standard) - for 1-5 V HART

Plug Material

  • 316 Stainless Steel - Blind Plug

Fluid

  • Gas
  • Liquid

Process Connection Material

  • 316L Stainless Steel
  • Hastelloy® C-276

Output Load

  • 1 MegaOhm or Greater - for 1-5 V HART

Approvals & Certifications

  • ATEX Flameproof & Intrinsically Safe
  • CE
  • CSA Explosion-proof & Intrinsically Safe
  • EMC EN 61326-1 Class A, EN 61326-2-3, EN 61326-2-5 (For Fieldbus)
  • FM Explosion-proof & Intrinsically Safe Approval
  • IEC Ex Flameproof & Intrinsically Safe Approval
  • NAMUR NE43
  • PED 2014/68/EU

Display

  • 5-Digit Numerical Display
  • 6-Digit Unit Display
  • Bar Graph
  • LCD Display
  • User-Configurable 10-Segment Signal Characterizer - for 4-20 mA Output

Supply Voltage

  • 10.5-30 Vdc - for Intrinsically Safe, Typical N, Non-Incendive
  • 10.5-32 Vdc - for Lightning Protector
  • 10.5-42 Vdc - for General Use & Flameproof Typical
  • 16.6 Vdc Minimum - for Digital Communications
  • 24 Vdc Supply, 0 to 550 ohms Load
  • 9-32 Vdc - for Fieldbus Communication

Communication

  • BRAIN
  • FOUNDATION Fieldbus
  • HART FSK Protocol
  • PROFIBUS PA

Mounting Position Effect

  • Tilting up to 90° will cause Zero Shift up to 0.21 kPa

Enclosure Finish

  • Anti-Corrosion Coating
  • Deep Sea Moss Green Paint (Munsell 0.6 GY3.1/2.0 or its Equivalent)
  • Polyurethane Paint

Diagnostics

  • Alarm
  • Configuration Error
  • CPU Failure
  • Hardware Failure
  • Process Alarm for Differential Pressure

Fill Material

  • Fluorinated Oil
  • Silicone

Cable Material

  • Polyethylene Insulated PVC Sheathed

Process Temperature

  • -40° to 120° C (-40° to 248° F)

NPT Connection

  • 1/2" NPT Female
  • 1/2" NPT Male

Environmental Protection

  • Explosion-proof
  • Flameproof
  • Intrinsically Safe
  • IP66
  • IP67
  • NEMA 4X

Metric Connection

  • M20 × 1.5 DIN 16 288 Male

Consumption

  • 0.96-3 mA - Power
  • 27 mW - Power

NACE & NIST

  • NACE MR-0103

Vibration Effect

  • <± 0.1% of URL - IEC 60770-1 Field with General Application or Pipeline with Low Vibration Level (10-60 Hz 0.15 mm Displacement 60-500 Hz, 2 G)
  • < 0.1% of URL - IEC 60770-1 Field or Pipeline with High Vibration Level (10-60 Hz, 0.21 mm Displacement / 60-2,000 Hz, 3 G)

Pressure Range

  • bar: -1 to 500
  • kPa: -100 to 50,000
  • psi: -14.5 to 7,200

Adjustment Type

  • Push Button
  • Screw - External Zero Adjustment

Temperature Effect

  • ± (0.15% of Span + 0.15% of 50 MPa) Per 28° C (50° F) - for D Capsule Ambient Temperature Effects
  • ± (0.15% of Span + 0.15% of URL) Per 28° C (50° F) - for A, B & C Capsule Ambient Temperature Effects

Screw Material

  • 316 Stainless Steel - Zero-Adjustment Screw & Set Screws

Update Time

  • 45 milliseconds

Supply Pressure - Maximum

  • psi: 1,450 (kPa: 10,000, bar: 100) - Capsule C
  • psi: 29 (kPa: 200, bar: 2) - Capsule A
  • psi: 290 (kPa: 2,000, bar: 20) - Capsule B
  • psi: 7,200 (kPa: 50,000, bar: 500) - Capsule D

Input Impedance

  • 10 KiloOhms or more at 2.4 kHz - for Communicating Device

Electrical Connectors

  • 1/2" NPT Female
  • G 1/2" Female
  • M20 Female

Materials of Construction

  • 316 Stainless Steel - Name Plate & Tag, Mounting Bracket
  • Polypropylene - Pipe

Current

  • 6,000 A, Maximum

Overpressure & Static Pressure Limits

  • psi: 2,900 (kPa: 20,000, bar: 200) - Capsule C, Maximum
  • psi: 580 (kPa: 4,000, bar: 40) - Capsule A & B, Maximum
  • psi: 8,700 (kPa: 59,980, bar: 599.8) - Capsule D, Maximum

Pressure Type

  • Gauge

Burst Pressure

  • Psi: 19,140 (kPa: 132,000, bar: 1,320) - Capsule D
  • psi: 4,351 (kPa: 30,000, bar: 300) - Capsule A, B & C

Power Supply

  • 9-28 Vdc for General Use & Flameproof Typical - for 1-5 V HART
