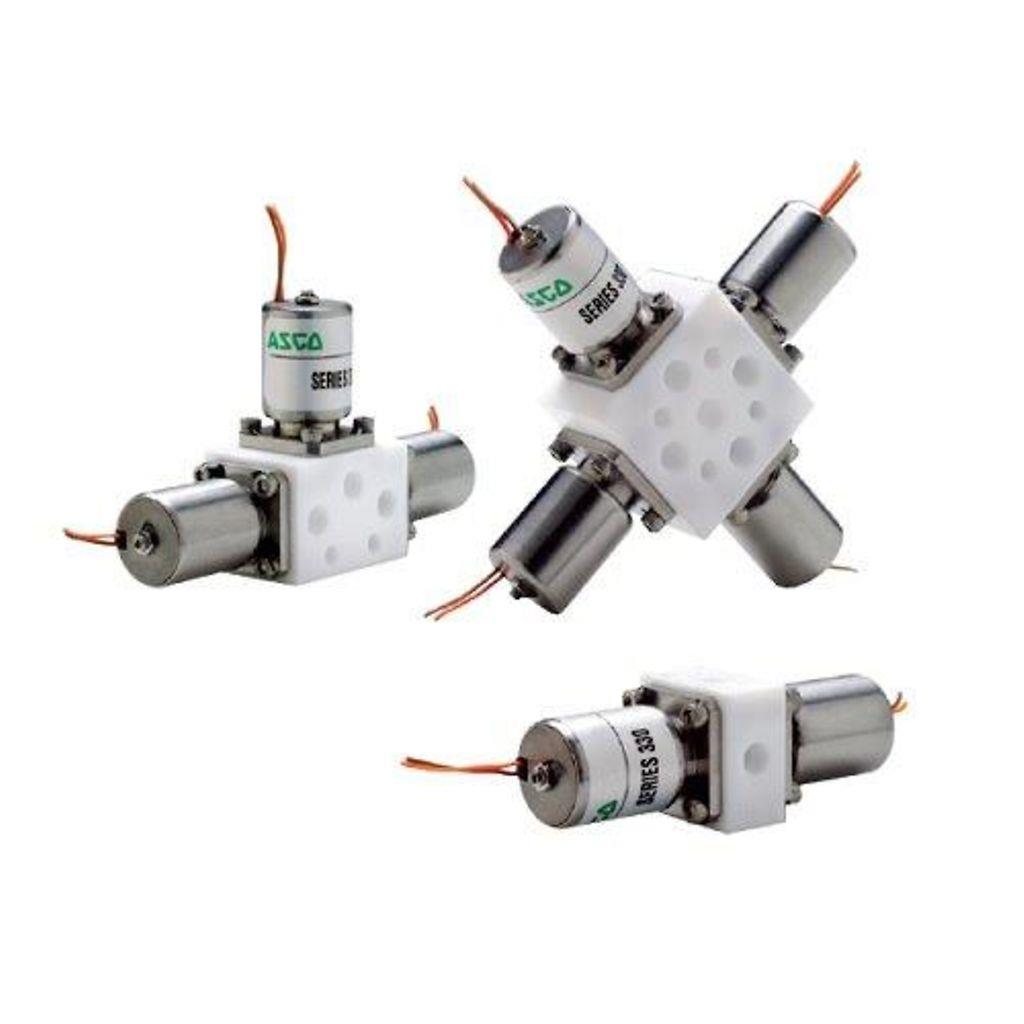

ASCO 330 Series Isolation Valve

Brand: ASCO

The ASCO 330 Series is a line of compact fluid isolation valves with excellent self-draining capability and easy-to-flush low-volume internal cavity, making it ideal in applications where cross-contamination must be minimized. The valves compact size saves valuable space in medical and analytical equipment. The 330 Series PTFE diaphragm and body shield the solenoids internal components from the media to handle the most aggressive fluids. Typical applications include chromatography, solvent selection-diversion, sample preparation, and liquid spectrometry.
Features
  • PTFE body and diaphragm isolate internal solenoid components from media resulting in a virtually impervious valve.
  • Compact architecture and low power consumption make the valve ideal for analytical bench-top instrumentation.
  • Available in a 2-, 3-, or 4-position PTFE manifold configurations for a wide range of applications.
  • Meets all relevant CE directives and is RoHS compliant for lead-free environments.

    • Specifications

    Brand

    Body Material

    • Engineered Plastics

    Flow

    • less than .05 Cv, less than .04 Kv

    Function

    • 2-Way - 2/2 Normally Closed

    Max. Differential, Max. Operating Pressure

    • Vacuum to 150 psig

    Media

    • Aggressive Liquids & Gases

    Operating Environment

    • Indoor

    Pipe / Port Size

    • 1/4/2028

    Port Type

    • UNF

    Standards & Regulations

    • IP65

    Valve Actuation

    • Solenoid

    Voltage

    • 12 DC, 24 DC, 50/60
