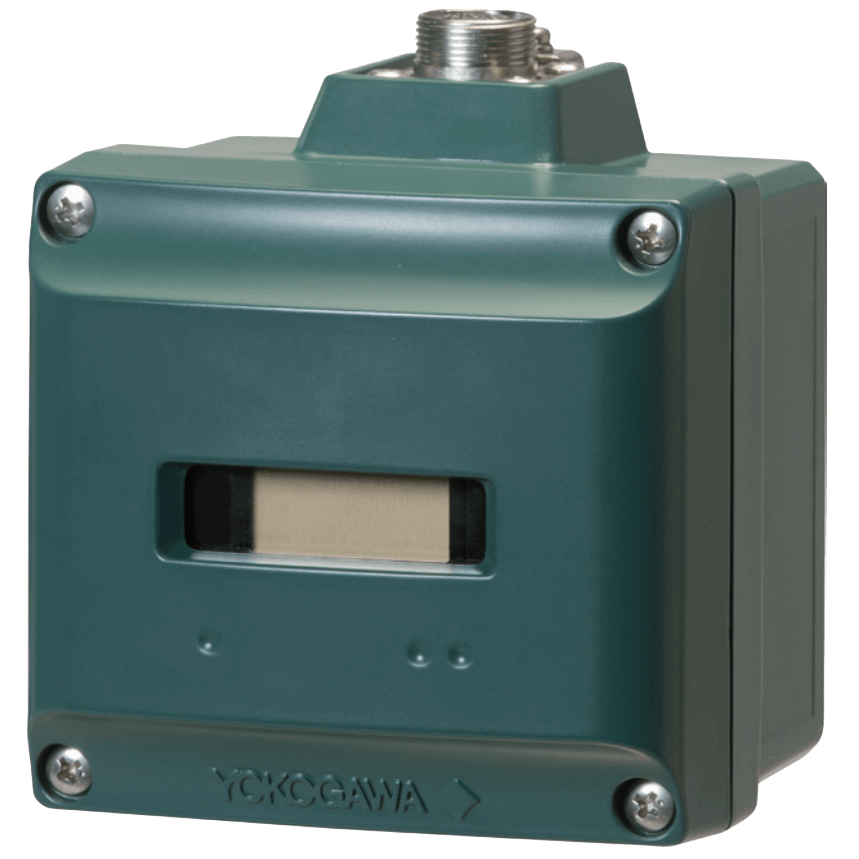

FN510 Field Wireless Multi-Function Module

Brand: Yokogawa

Field Wireless Multi-Function Module FN510 with “Field Wireless Communication Module FN110” is connectable with a field wireless network as a field wireless device. This product acquires sensor data from a connected sensor and transmits it to a field wireless network through FN110. Refer to General Specifications of “Field Wireless Communication Module FN110” for an overview and detailed information.
Features
Various Input / Output functions
Analog input, digital input/output or pulse input are selectable (Measurement code: A). ACAI function; from the AC voltage to dedicated accelerometer input, acceleration or velocity can be measured (Measurement code: C).

Connect various sensor to the field wireless network
This product transmits sensor value acquired from a 4-20 mA analog device (Measurement code: A) or a dedicated accelerometer (Measurement code: C) to the host system via field wireless network.

Installation flexibility
Cable elimination allows installing a device at locations where it was previously either inaccessible or costprohibitive because of cable management and cost.

Small and lightweight housing with LCD
This product has a small and lightweight housing with a built-in LCD that displays the process data and communication status.

Specifications

Brand

Accuracy

  • ± 16 μA - Analog Input

Approvals & Certifications

  • ATEX Intrinsically Safe
  • CE EN 61010-1
  • CSA IEC 60529
  • EMC EN 61326-1 Class A, EN 55011 Class A
  • FM Intrinsically Safe
  • IEC Ex Intrinsically Safe

Battery Life

  • 10-Years - when Using Analog or Digital Input, Update Period: 10 seconds
  • 2-Years - when Using Digital Input, Update Period: 10 seconds
  • 3-Years - when Using Digital Input, Update Period: 30 seconds
  • 7-Years - when Using Analog or Digital Input, Update Period: 5 seconds

Cable Length

  • 65.61 feet (20 meters), Maximum

Channels

  • 1 - Analog, Pulse Input & Digital Output Channel
  • 2 - Digital Input Channel

Communication

  • Baud Rate: 9600 bit/sec
  • Half-Duplex
  • ISA100-Wireless
  • RS-485

Current

  • 125 mA DC - Digital Output, Maximum
  • 50 mA - Supply Current

Detection Time

  • 5 milliseconds Minimum - Pulse Input

Diagnostics

  • Firmware Internal Error
  • Memory Error
  • Power Failure
  • Wired Communication Failure

Display

  • 5-Digit Numerical & Status Display
  • LCD Display

Electrical Connectors

  • 1/2" NPT Female - Vertical Connection
  • 5-Pin Round Connector Dedicated
  • Blind Plug - Horizontal & Vertical Connection
  • G 1/2" Female - Vertical Connection
  • M20 Female - Vertical Connection

Enclosure, Body Material

  • Plastic
  • Polycarbonate

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X
  • Water-Proof

Frequency

  • 100 Hz - Pulse Input, Maximum

Humidity

  • 0 to 100% Relative Humidity, Non-Condensing - Ambient Humidity (Operating, Storage)

Input

  • 0.2 mA - Digital Input (IN1)
  • 0 to 25 mA to Analog Input
  • 1 mA - Digital Input (IN2)

Input Signal

  • 4-20 mA DC - Analog Input
  • Dry Contact - Digital Input

Materials of Construction

  • 316 Stainless Steel - Wired Tag Plate, Mounting Bracket

Maximum Voltage

  • 30 Vdc - Digital Output, Maximum

Mounting

  • 2" Pipe Mounting Bracket

Mounting Position

  • Horizontal
  • Vertical

Operating Temperature

  • -30° to 80° C (-22° to 176° F) - LCD Visible Range
  • -40° to 85° C (-40° to 185° F) - Attitude up to 3,000 meters

Output Format

  • Dry Contact - Digital Output (Output Signal)

Power Requirement

  • 2 x Primary Lithium Thionyl Chloride Batteries
  • 7.2 V, 19 Ah Battery

Resistance

  • 10 ohms - Analog Input (Internal Shunt Resistor)
  • 200 ohms - Digital, Pulse Input, Maximum
  • 50 KiloOhms - Digital, Pulse Input (Minimum Off Resistance)

Shock

  • 50 G, 11 milliseconds - Shock Resistance

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Supply Voltage

  • 3.5 V

Temperature Coefficient

  • ± 3.2 µA / 10° C (18° F) - Analog Input

Temperature Effect

  • ± 10° C/hour (± 18° F/hour) or less - Ambient Temperature Gradient (Operating)
  • ± 20° C/hour (± 36° F/hour) or less - Ambient Temperature Gradient (Storage)
  • ± 3.2 UA/10° C - Analog Output

Update Time

  • 1 to 3,600 seconds

Vibration

  • 0.21 mm peak-to-peak (10-60 Hz), 3 G (60-2 kHz) - Vibration Resistance
