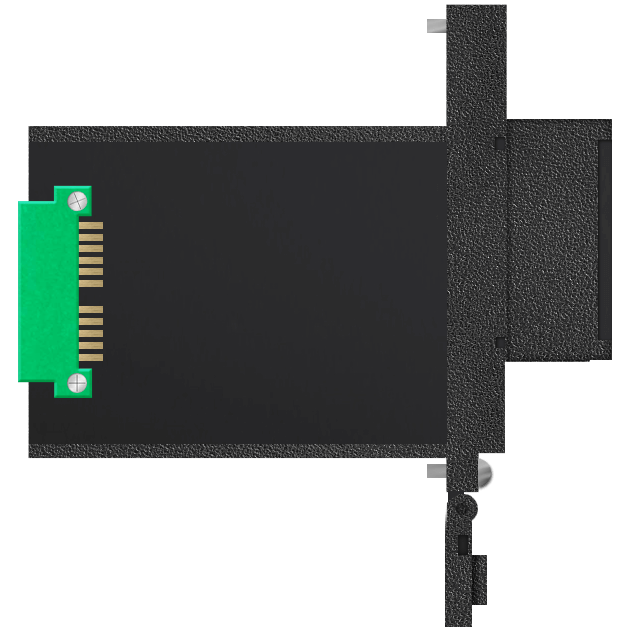

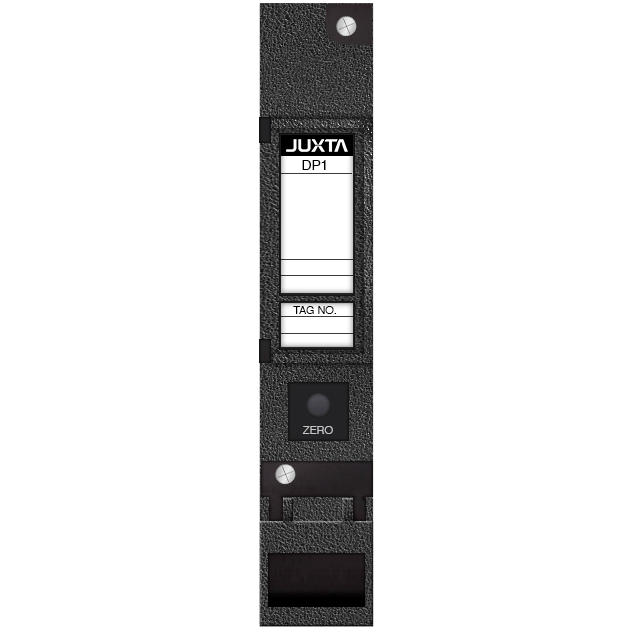

DP1 Pulse Repeater
Brand: Yokogawa
The DP1 is a nest-mounting type DCS-supported pulse repeater that receives pulses from voltage-free contacts, open collector contacts, voltage, and current, and converts them into isolated transistor-contact pulses.
Features- Internal filter can be set to eliminate chattering (In cases where the input frequency range is up to 100 Hz, the pulse width is 3 Milliseconds or more)
Specifications
Brand
Consumption
- 60 mA at 24 Vdc - Current Consumption
Electrical Connectors
- M4 Screw Terminal - External Wiring
Electrical Rating
- 15 mA or more at 15 Vdc - Contact Capacity
- 30 mA at 30 Vdc - Maximum
Frequency
- 0 to 10,000 Hz - Input Frequency
- 0 to 6,000 Hz - Input Frequency If the Input is Voltage Pulse & the Swing is 5 V or more
Humidity
- 5 to 90% Relative Humidity, Non-Condensing
Input
- 2-Wire - Voltage-Free Contact Pulse, Voltage Pulse, or Current Pulse
- 3-Wire - Voltage Pulse or Current Pulse
- Relay Contact
- Transistor On/Off Contact
Insulation Resistance
- 100 MegaOhms or more at 500 Vdc between Input & Output, Output & Power Supply, & Input & Power Supply
Mounting
- Nest-Mounting
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- Open Collector
Power
- 0.5 W (12 Vdc Power Supply)
- 2 W (24 Vdc Power Supply)
Power Supply
- 12 Vdc ± 10% - Transmitter Power Supply
- 24 Vdc ± 10% (Ripple Content 5% peak-to-peak or less) - Transmitter Power Supply
- 30 mA or less - Transmitter Power Supply
Pulse Range
- 60 µs - Minimum Input Pulse Width
Resistance
- 1 KiloOhm - Internal Load Resistance (Current Pulse)
- 15 KiloOhms or more (Contact or Volatge Pulse) - Input Resistance
- 200 ohms - Internal Load Resistance (Current Pulse)
- 510 ohms - Internal Load Resistance (Current Pulse)
- Close: 200 ohms or less - Contact Resistance
- Open: 100 KiloOhms or more - Contact Resistance
Supply Voltage
- -1 to 8 Vdc - Low Level Voltage
- 1,500 Vac/minute between Input & (Output & Power Supply) - withstand Voltage
- 3-24 Vdc - High Level Voltage
- 500 Vac/Minute between Output & Power Supply - withstand Voltage
