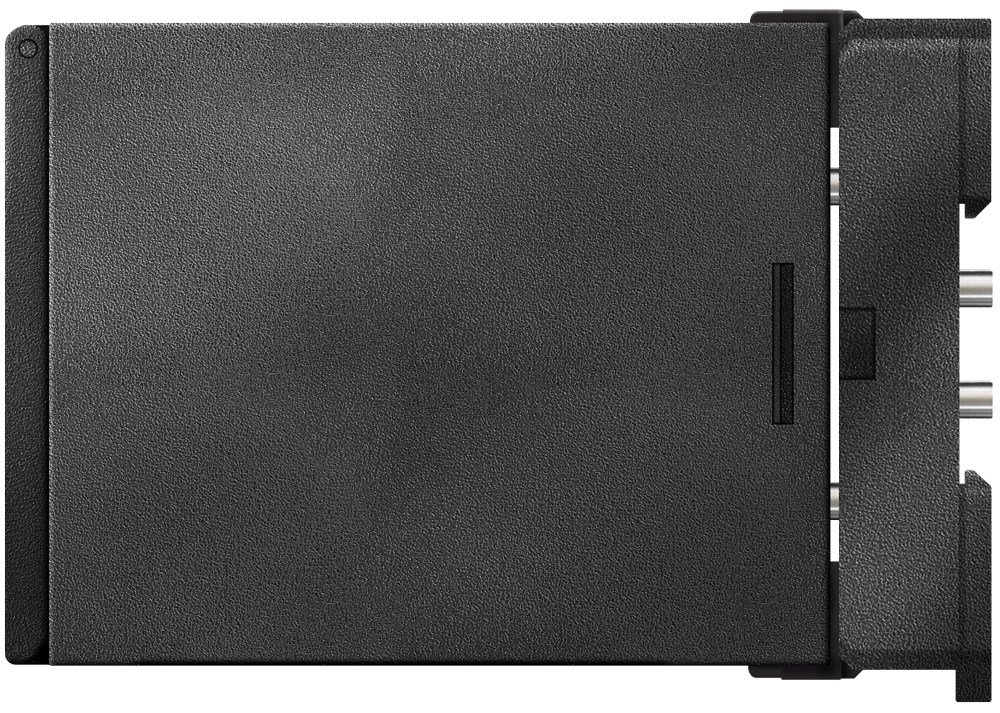

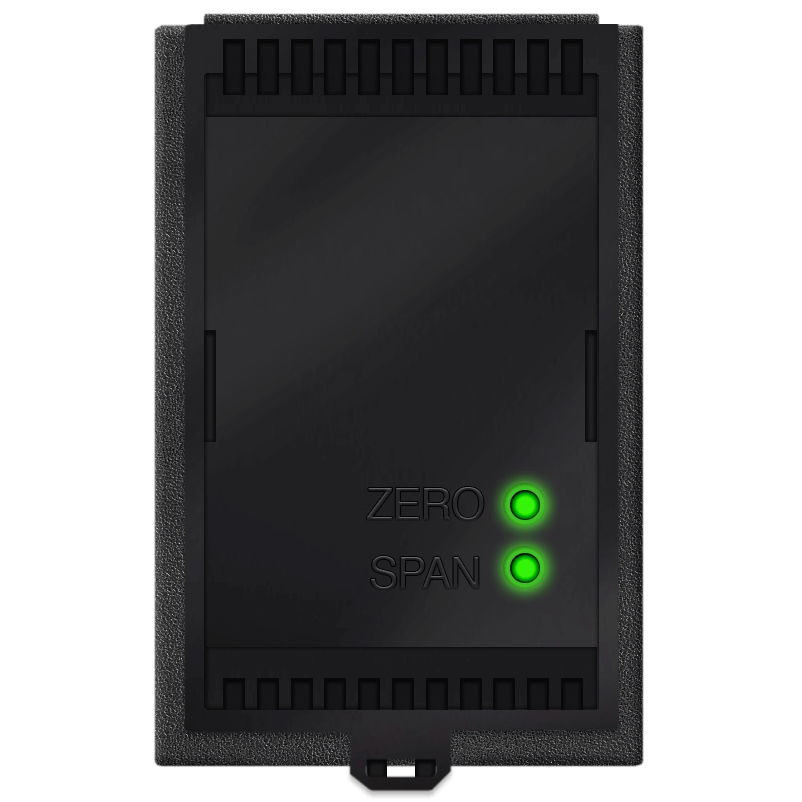

MC1B Loop Powered Isolator
Brand: Yokogawa
This Loop Powered Isolator Inputs 4-20 mA DC Signal and Outputs 4-20 mA DC Signal.
Features- Two Channels Type
Specifications
Brand
Accuracy
- ± 0.1% of Span
Channels
- Two
Electrical Connectors
- M3.5 Screw Terminal
Enclosure, Body Material
- ABS Plastic
Humidity
- 5 to 90% Relative Humidity
Input Signal
- 4-20 mA DC
Insulation Resistance
- More Than 100 MegaOhms at 500 Vdc between Input & Output
Mounting
- DIN Rail Mounting
- Rack-Mounted
- Wall Mounted
Output Signal
- 4-20 mA DC
Resistance
- 250 ohms + secondary Side Load Resistance - Input Resistance
- 50 to 300 ohms - Permissible Load Resistance
- More Than 100 KiloOhms - Output Resistance
Response Time
- 10 milliseconds, 63% Response (10 to 90%)
Supply Voltage
- 1,500 Vac/minute between Input, Output & between Channels - withstand Voltage
- 30 Vdc - Permissible Applying Voltage
Temperature Effect
- Less than ± 0.2% of Span for 10° C (18° F) Change - Effect of Temperature Change
Temperature Range
- 0° to 50° C (32° to 122° F)
