DCP I/O Card Nest
Brand: Yokogawa

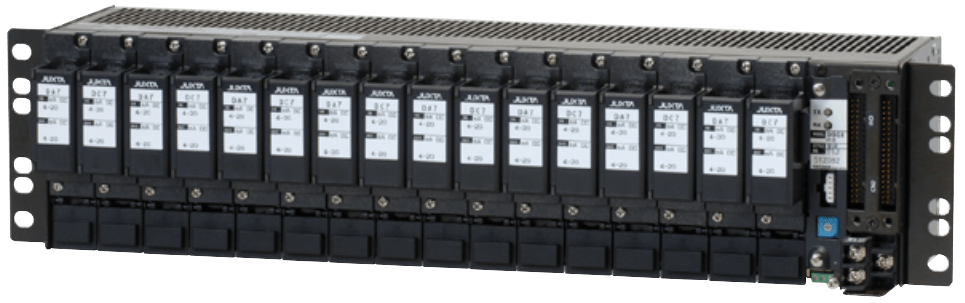

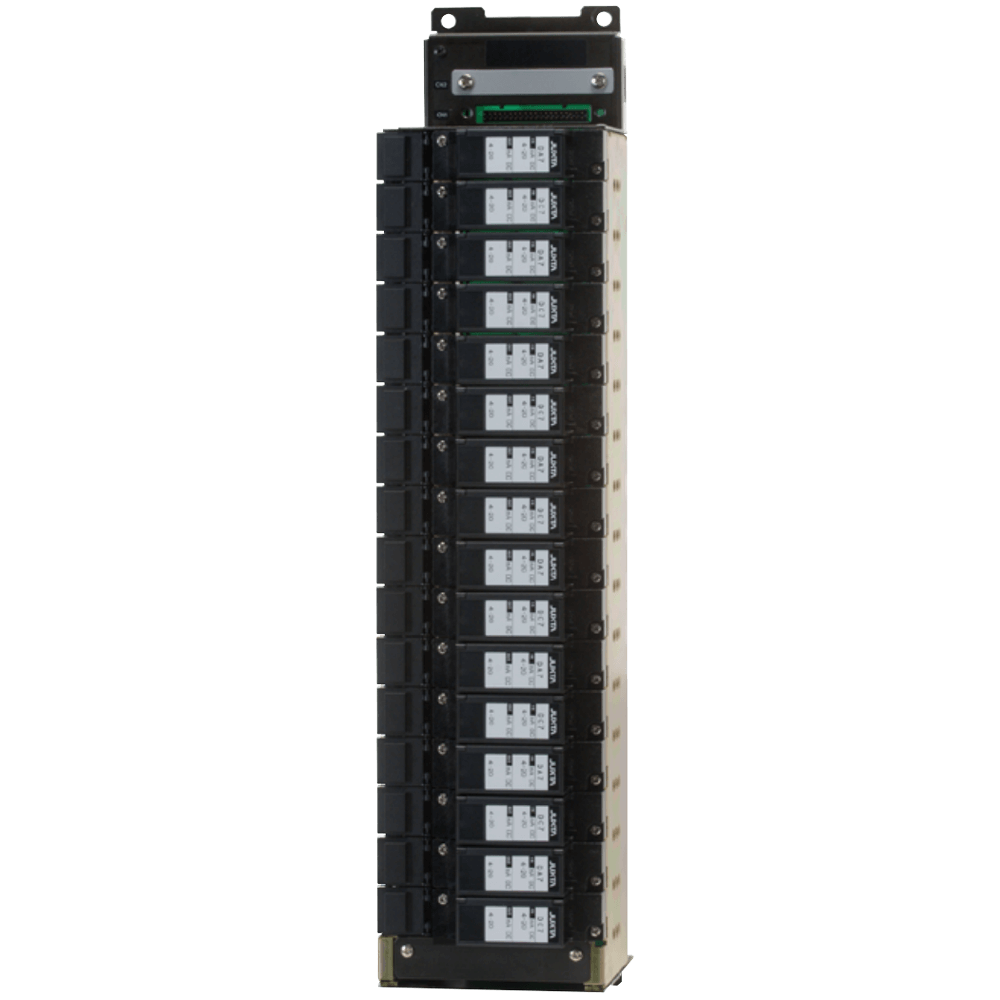

The DCP is a connecter-connection type 16-unit mounting nest. It is available for mixed mounting of electronic and pneumatic signal conditioners, and connection with DCS I/O modules for CENTUM series of Yokogawa Electric Corporation.
Features- Ranges and parameters can be set using DSC2 or the JHT200, Yokogawa handy terminal (The availability depends on the model of signal conditioners)
Specifications
Brand
BSP Connection
- 3/8" BSPT Female - Air Supply Connection
Electrical Connectors
- M3 Screw Terminal - Input Output Cable Shield Connection
- M4 Screw Terminal - Input Output Signal Connection, Power Supply & Ground Connection
Enclosure Finish
- Black
Humidity
- 5 to 90% Relative Humidity, Non-Condensing - Operating Humidity Range
Insulation Resistance
- 100 MegaOhms or more at 500 Vdc between Input & Power Supply, Input & Ground, Input & CN1-CN2, Power Supply & Ground, Power Supply & CN1-CN2, & Ground & CN1-CN2
Mounting
- M5 Screws - Nest Mounting Screw
- Rack-Mounted
- Wall Mounted
Mounting Position
- Horizontal
Operating Temperature
- 0° to 50° C (32° to 122° F)
Power Supply
- 24 Vdc
Supply Voltage
- 1,500 Vac/minute between Input & (Power Supply & Ground & CN1-CN2) - withstand Voltage
- 500 Vac/minute between Power Supply & Ground, Ground & CN1-CN-2, & Power Supply & CN1-CN2 - withstand Voltage
