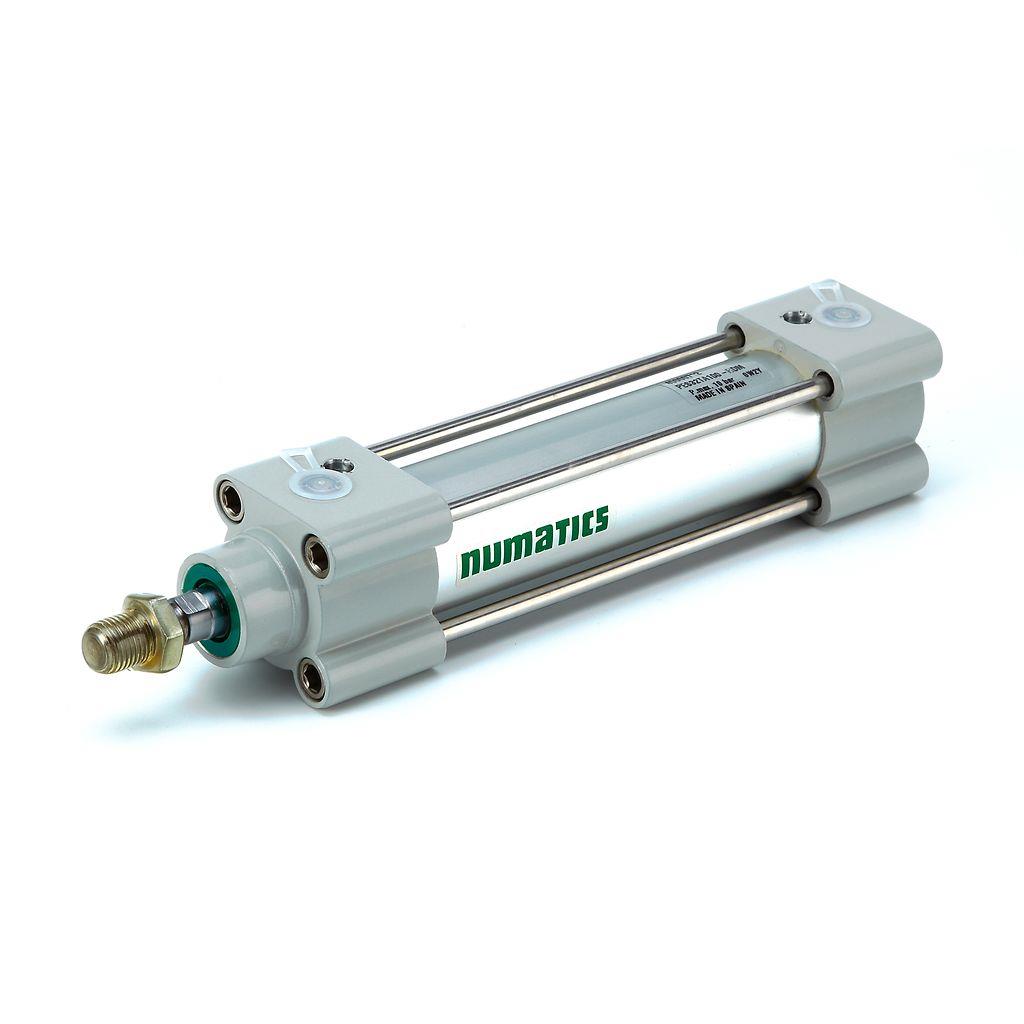

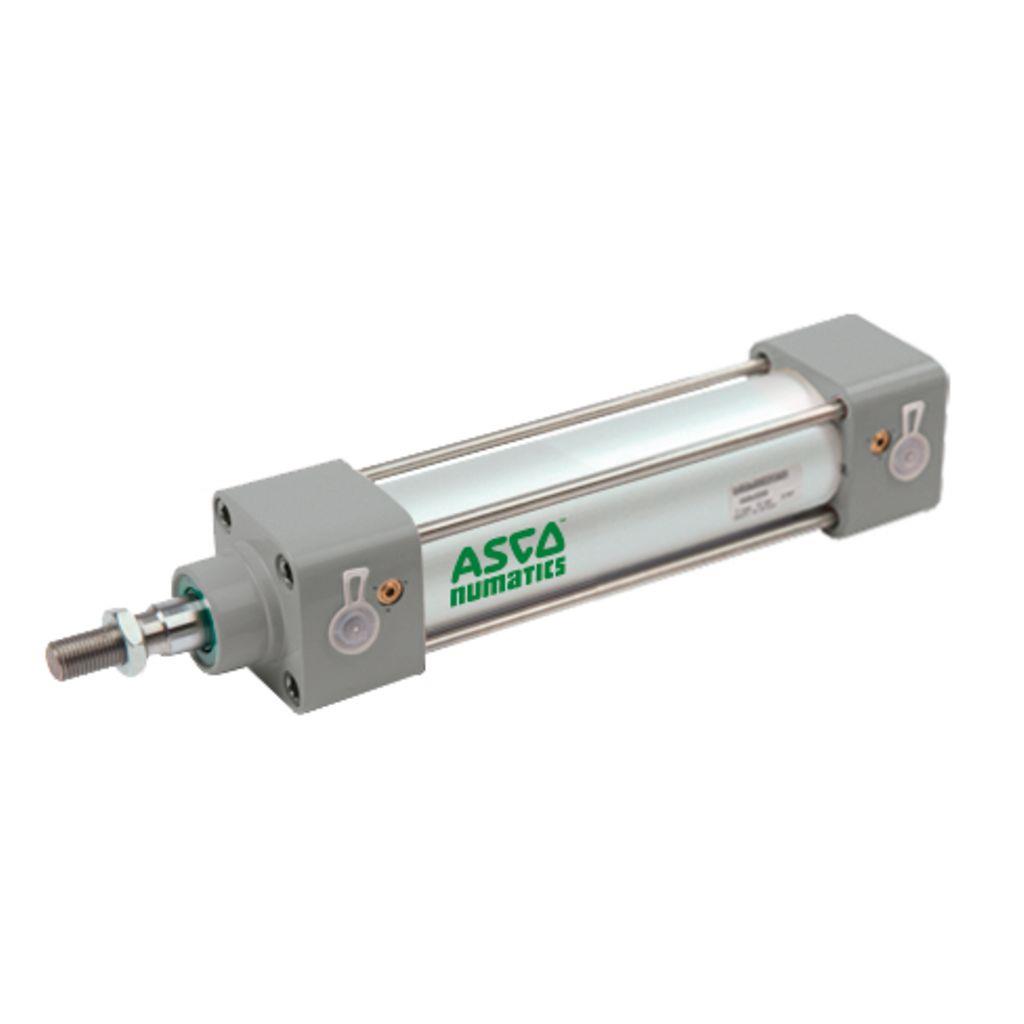

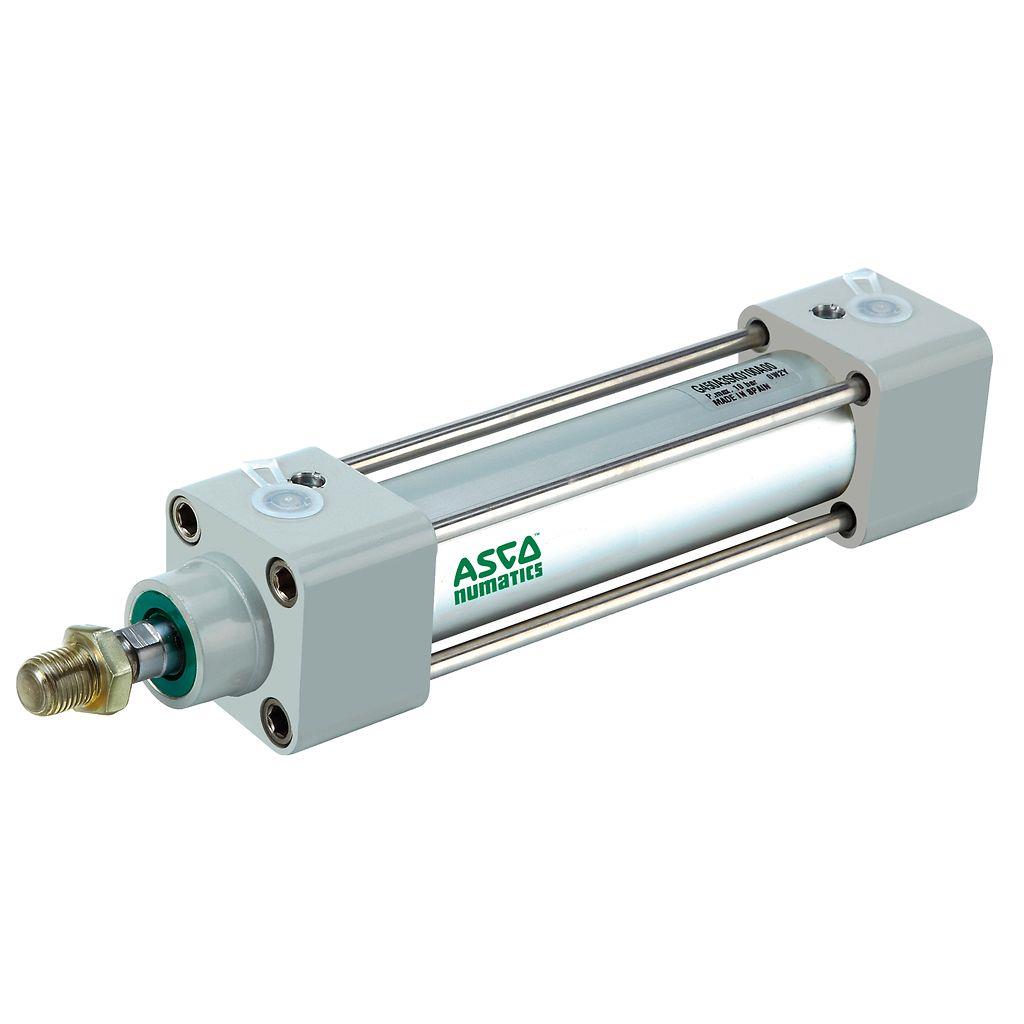

Emerson Numatics Cylinder and Actuator, 450 Series
Images are representations only.

Numatics 450 Series Cylinders & Actuators

Brand: ASCO

17.png 16.png 15.png Emerson Numatics Cylinder and Actuator, 450 Series Emerson Numatics Cylinder and Actuator, 450 Series
The Numatics 450 Series is an air cylinder line with round aluminum bodies and robust stainless steel tie rods that is ideally suited for medium-duty general-purpose applications. The cylinders are designed for interchangeability with all ISO 15552-standard competitive offerings. The 450 Series offers an extensive range of accessories allowing easy installation for virtually every application. Its durable tie-rod design permits customers to achieve maximum productivity with low friction.
Features
  • Rod guidance incorporates high-performance, self-lubricating bearing and nonabrasive scraper seal for exceptional reliability.
  • Easy and precise cushioning adjustment by means of captive micrometer screws.
  • Large choice of standard fittings, rod ends, and mounting styles simplify installation.
  • Equipped for magnetic position detectors.
  • Cylinders are NRL Series rod-lock compatible.

    • Specifications

    Brand

    Bore

    • 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm

    Operating Environment

    • Corrosive, Indoor, Washdown

    Standards & Regulations

    • ISO

    Stroke

    • 2000 mm, Maximum

    Documentation

    Product Manuals

    Brochure

    Catalogs

    show more
