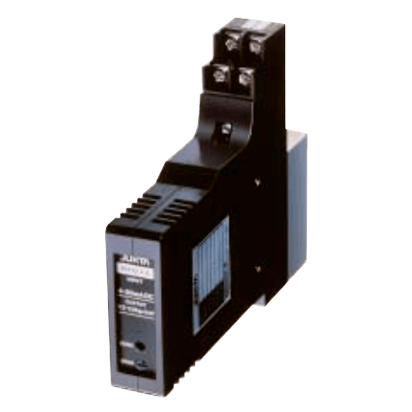

Images are representations only.
PH10 Electric to Pneumatic Converter
Brand: YokogawaThis plug-in type E/P transducer receives 1-5 Vdc or 4 to 20 mA DC electric signal and converts it into 20 to 100 kPa, 0.2 to 1.0 kgf/cm² or 3 to 15 psi pneumatic pressure signal.
Features- Compact type, high quality by using semi-conductor pressure sensor
- Positional error is less than ±0.1%
- Air supply unit to supply air in block is available
- When 4 to 20 mA DC input, 250 Ohms receiving resistor should be outer set
Specifications
Brand
Accuracy
- ± 0.3% of Span
- ± 0.5% of Span when Multi-Close Mounting
BSP Connection
- 1/4" BSPT Female
Dissipation
- < 4 Nl/min - Air Dissipation
- 90 mA at 24 Vdc - Current Dissipation
Electrical Connectors
- M4 Screw Terminal
Enclosure, Body Material
- ABS Plastic
Flow Rate
- 60 NL/min - Maximum
Humidity
- 5 to 90% Relative Humidity, Non-Condensing
Input Signal
- 1-5 Vdc
- 4-20 mA DC
Insulation Resistance
- Over 100 MegaOhms at 500 Vdc between Input & Power Supply, Power Supply & Air Supply Block
Mounting
- Wall Mounted
Mounting Position Effect
- <± 0.1% of Span for All Directions
Power Requirement
- 24 Vdc ± 10%
Power Supply Effect
- <± 0.1% of Span for 24 Vdc ± 10% Fluctuation
Pressure Range
- psi: 3 to 15 (kPa: 20 to 100, bar: 0.2 to 1) - Output Signal
Resistance
- 1 MegaOhm at 1-5 Vdc - Input Resistance
- 250 ohms at 4-20 mA DC - Input Resistance
Span & Zero Adjustments
- ± 5% of Span
Supply Pressure
- psi: 20.31 (kPa: 140, bar: 1.4) ± 10% - Pneumatic Pressure Supply
Supply Pressure Effect
- ± 0.1% of Span for psi: 20.31 (kPa: 140, bar: 1.4) ± 10% - Effect of Pneumatic Pressure
Supply Voltage
- 500 Vac/minute between Input, Power Supply & Power Supply, Air Supply Block - withstand Voltage
Temperature Effect
- <± 0.4% of Span for 10° C (18° F) Change - Effect of Ambient Temperature
Temperature Range
- 0° to 50° C (32° to 122° F)
