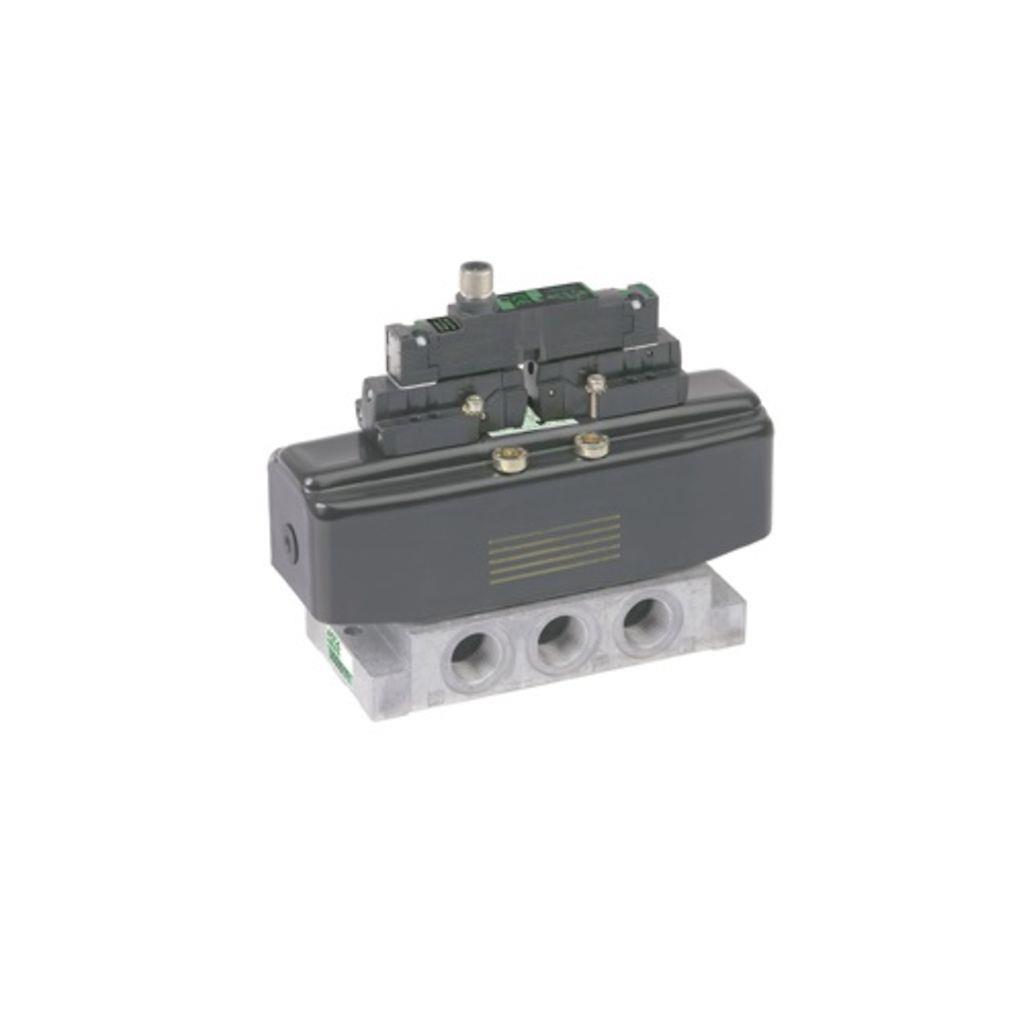

Emerson ASCO Solenoid Valve, 543 Series
Images are representations only.

ASCO 543 Series ISO 5595/1 Size 3 Solenoid Valves

Brand: ASCO

The ASCO 543 Series is a family of ISO 5595/1 pneumatic solenoid spool valves. The valves are designed for reliable, long service life of 30 million cycles. Compact models and options for ATEX zones 1/21 and 2/22 are available. They are suitable for applications such as packaging.
Features
  • Wide range of subbases with side- or bottom-oriented ports for easy installation.
  • Flexible air pilot supply by seal selector.
  • Modular assembly with joinable subbases.
  • Manual tester options are available.
  • Can be used with unlubricated air.

    • Specifications

    Brand

    Flow

    • From 2000 to 6000 L/M

    Function

    • 5/2, 5/3

    Max. Differential, Max. Operating Pressure

    • Vacuum to 10.3 bar, Vacuum to 150 psig, 10.3 to 34.5 bar, 150 to 500 psig

    Media

    • Air, Inert Gas

    Operating Environment

    • Hazardous

    Pipe / Port Size

    • 1/2, 3/4

    Port Type

    • G ISO228 / 1-G BSPP

    Standards & Regulations

    • ATEX Zone 1-21, ATEX Zone 2-22, ISO, IEC 60529 (Ingress Protection), ATEX, IP65

    Valve Actuation

    • Solenoid - Air Pilot, Solenoid
