EJA118N Differential Pressure Transmitter
Brand: YokogawaThe EJA-A series is Yokogawa's most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

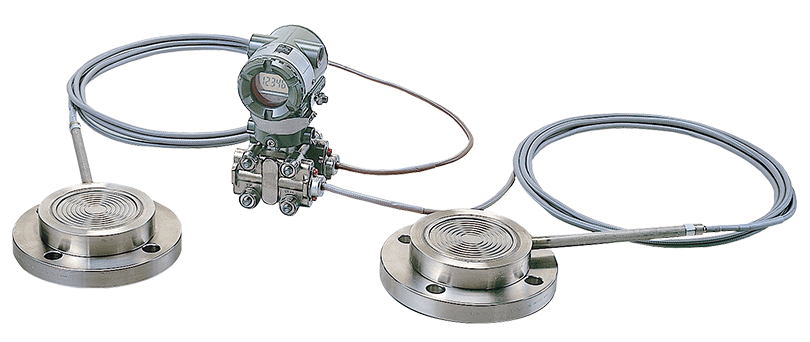

The EJA118 is a Differential Pressure Transmitter with remote diaphragm seals in the series.
It is available with Flush-type seals (EJA118W), Extended-type seals (EJA118N), or a combination of the two (EJA118Y)
Features- 0.2% Accuracy
- 700 ms Response Time
- External Zero Adjustment
Specifications
Brand
Accuracy
- ± 0.2% - Capsule M & H
Alarm
- Down-Scale: -2.5%, 3.6 mA DC or less
- Down-Scale: -5%, 3.2 mA DC or less
- Up-Scale: 110%, 21.6 mA DC or more
Ambient Temperature Range
- -30° to 60° C (-22° to 140° F) - with Integral Indicator
- -40° to 60° C (-40° to 140° F) - General Use Typical
Approvals & Certifications
- Leak Test
- Mill Certificate
- Pressure Test
Approvals & Certifications
- CSA - Explosion-proof & Intrinsically Safe
- EMC - EN 61326-1 Class A, Table 2 (Industrial Locations), EN 61326-2-3
- FM - Explosion-proof & Intrinsically Safe
- IECEx - Flameproof, Typical N & Intrinsically Safe
- NAMUR NE43 Compliant
- PED 97/23/EC - Sound Engineering Practice
- TIIS - Flameproof & Intrinsically Safe
Cable Material
- Polyethylene Insulated PVC Sheathed
Capillary Length
- 3.3 to 32.8 feet (1 to 10 meters)
Communication
- BRAIN
- FOUNDATION Fieldbus
- HART
- PROFIBUS PA
Damping Adjustment
- 0.2 to 64 seconds - Can be Set in 9 Increments
Diaphragm Material
- Hastelloy® C-276
- JIS 316L Stainless Steel
- Tantalum
- Titanium
Display
- LCD Digital Indicator
Distance
- 2 Kilometers - Communication Distance
Electrical Connectors
- 1/2" NPT Female
- G 1/2" Female
- M20 Female
- PG13.5 Female
Electrical Protection
- Lightning Protection as Per IEC 61000-4-4, IEC 61000-4-5
Enclosure Finish
- Deep Sea Moss Green Paint (Munsell 0.6 GY3.1/2.0)
- Epoxy Resin-Baked Coating
- Polyurethan Resin Baked Finish
Enclosure, Body Material
- JIS SCS14A Stainless Steel - Amplifier Housing
Environmental Protection
- IP66
- IP67
- NEMA 4X
Fill Material
- Ethylene Glycol
- Fluorinated Oil
- Silicone Oil
Flange Material
- JIS S25C
- JIS SCM435 - Cover Flange Bolts Material
- JIS SCS14A - Cover Flange
- JIS SUS630 - Cover Flange Bolts Material
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ANSI/JPI)
- 3" (DN80) - 300# (ANSI/JPI)
- 3" (DN80) - JIS 10K
- 3" (DN80) - JIS 20K
- 3" (DN80) - PN 10
- 3" (DN80) - PN 16
- 3" (DN80) - PN 25
- 3" (DN80) - PN 40
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ANSI/JPI)
- 4" (DN100) - 300# (ANSI/JPI)
- 4" (DN100) - JIS 10K
- 4" (DN100) - JIS 20K
- 4" (DN100) - PN 10
- 4" (DN100) - PN 16
- 4" (DN100) - PN 25
- 4" (DN100) - PN 40
Fluid Specific Gravity
- 0.94 to 1.09 - Silicone Oil
- 1.09 - Ethylene Glycol
- 1.90 to 1.92 - Fluorinated Oil
Humidity
- 5 to 100% Relative Humidity at 40° C (104° F) - Ambient Humidity Limits
Input Impedance
- 10 KiloOhms or more at 2.4 kHz
Load
- 0.22 μF or less - Load Capacitance
- 250 to 600 ohms - Digital Communication
- 3.3 MH or less - Load Inductance
Materials of Construction
- 304 Stainless Steel - Tag Plate
- 316 Stainless Steel - Tag Plate
Mounting
- 2" Pipe Mounting - Transmitter
- Flange Mount - Diaphragm Seals
O-Ring Material
- Fluororubber
Operating Temperature
- Maximum
Output
- 4-20 mA DC (2-Wire)
Power Supply Effect
- ± 0.005% Per Volt (21.6 to 32 Vdc, 350 ohms)
Pressure Range
- bar: -5 to 5
- Inches WC: -2,000 to 2,000
- kPa: -500 to 500
- mm WC: -10,000 to 10,000
- psi: -72.52 to 72.52
Pressure Type
- Absolute
- Differential
Process Temperature
- -50° to 300° C (-58° to 572° F)
Response Time
- 0.5 second, Maximum
Screw Material
- 316 Stainless Steel - Zero-Adjustment Screw & Set Screws
Static Pressure Effect
- Total Shift: ± 0.14% / 0.98 MPa (10 kgf/cm²) for 4" Flange
- Total Shift: ± 0.25% / 0.98 MPa (10 kgf/cm²) for 3" Flange
- Zero Shift: ± 0.1% / 0.98 MPa (10 kgf/cm²) for 4" Flange
- Zero Shift: ± 0.2% / 0.98 MPa (10 kgf/cm²) for 3" Flange
Supply Pressure
- psi: 0.3916 (kPa: 2.7, bar: 0.027)
Supply Voltage
- 10.5 -32 Vdc - for Lightning Protector
- 10.5-28 Vdc for TIIS Intrinsically Safe Typical
- 10.5-30 Vdc - for Intrinsically Safe, Typical N, Non-Incendive, or Non-Sparking Typical
- 10.5-42 Vdc - for General Use & Flameproof Typical
- 16.4-42 Vdc - Communication Line
Temperature Effect
- ± 1.4%/50° C (122° F) - Ambient Temperature Effect
Update Time
- 0.125 seconds - Fast Response
Wetted Materials
- JIS SUS316 - Pipe
Zero Offset
- Continuously Adjustable Resolution 0.01% of Span - External Zero Adjustment
