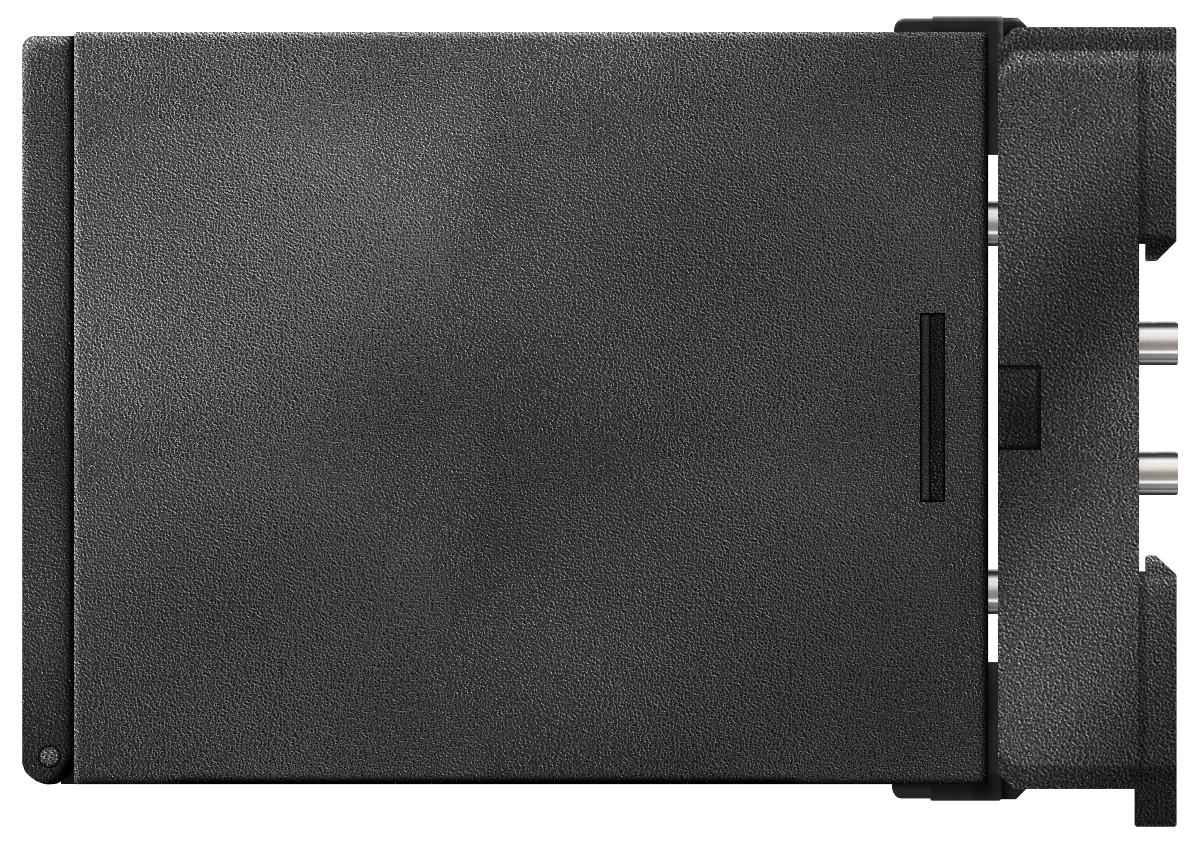

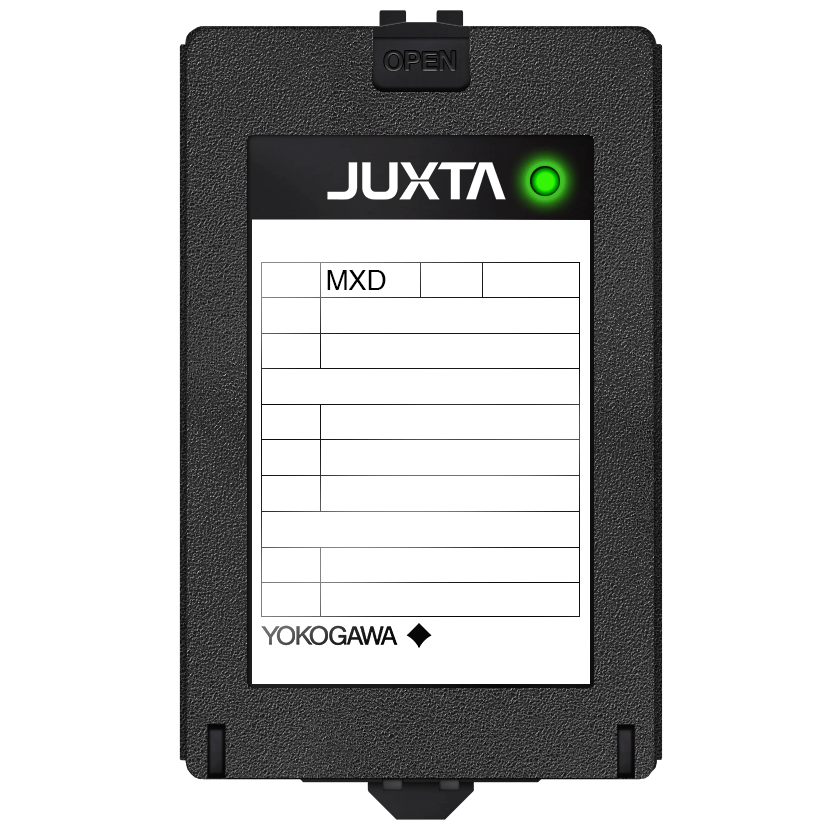

MXD Universal Computing Unit
Brand: Yokogawa
This plug-in type universal computing unit receives DC current or DC voltage signals, applies various computing functions to them, and then converts them into isolated DC current or DC voltage signals.
Features- The optional Parameter Setting Tool (VJ77) or Handy Terminal (JHT200) can be used for the setting changes of various parameters such as computing functions or input/output ranges, the setting changes of programs, and the test outputs
- The operation indicating lamp shows the operation status, abnormalities in a setting etc
- Without a setting tool such as Handy Terminal etc., outputs can be adjusted and forced contact outputs can be turned on or off using the switches on the front panel.
Specifications
Brand
Accuracy
- ± 0.1% of Span
Consumption
- 2.3 W at 24 Vdc - Power Consumption
- 4.6 VA at 100 Vac - Power Consumption
- 6.4 VA at 200 Vac - Power Consumption
Current
- 40 mA DC or less for Input Resistance of 250 ohms
- 70 mA DC or less for Input Resistance of 100 ohms
Duty Cycle
- 100 milliseconds - Computation Cycle
Electrical Connectors
- M3.5 Screw Terminal
Electrical Rating
- 0.1 mA at 5 Vdc - Contact Rating
- 200 mA at 30 Vdc - Contact Capacity
Function
- Analog Memory
- Bottom Holder
- Free Program
- Integrated Pulse Output
- Peak Holder
- Program Setter
Humidity
- 5 to 90% Relative Humidity Non-Condensing
Input
- ± 15 Vdc or less - Input Voltage
Input Signal
- 0-10 mA DC, Span is 0.1 mA or more
- 0-50 mA DC, Span is 1 mA or more
- -10 to 10 Vdc, Span is 0.1 V or more
- -2 to 2 Vdc, Span is 10 mV or more
Insulation Resistance
- 100 MegaOhms or more at 500 Vdc between Input, Analog Output, Contact Output, Power Supply, & Grounding Terminals
Materials of Construction
- Main Unit: ABS Resin + Polycarbonate Resin (Back), UL94 V-0
- Main Unit: PBT Resin, Including Glass Fiber (Black), UL94 V-0
- Socket: Modified Polyphenylene Oxide Resin, Including Glass Fiber (Black), UL94 V-1
Mounting
- DIN Rail Mounting
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Operating Voltages
- 12-48 Vdc
- 85-264 Vac
Output
- 0-10 Vdc - Span is 0.1 V or more
- 0 to 100 mVdc - Span is 10 mV or more
- 0-20 mA DC - Span is 2 mA or more
- 0-5 mA DC - Span is 1 mA or more
- -10 to 10 Vdc - Span is 0.2 V or more
- -100 to 100 mVdc - Span is 20 mV or more
- Open Collector
Power Supply
- 100-240 Vac (-15, 10%), 50/60 Hz - Power Supply Rated & Input Voltage
- 15-40 Vdc (± 20%) - Power Supply Rated & Input Voltage
Power Supply Effect
- ± 0.1% of Span - Effect of Power Supply Voltage Fluctuations
Resistance
- 1 MegaOhm (800 KiloOhms for 15-40 Vdc & 10 KiloOhms for 100-240 Vac During Power Off) - Input Resistance Voltage Signal
- 100 ohms (External Receiving Resistor) - Input Resistance Current Signal
- 250 ohms for the Optional Specification - Input Resistance Current Signal
- 750 to 250,000 ohms - Permissible Load Resistance
- OFF: 100 KiloOhms or more - Contact Input
- ON: 200 ohms or less - Contact Input
Response Time
- 500 milliseconds, 63% Response (10 to 90%)
Span & Zero Adjustments
- ± 1% of Span or more - Input Adjustment Range
- ± 5% of Span or more - Output Adjustment
Supply Voltage
- 1,000 Vac for 1 Minute between Analog Output & Contact Output Terminals - withstand Voltage
- 2,000 Vac for 1 Minute between Input, (Analog Output & Contact Output), Power Supply & Grounding Terminals Mutually - withstand Voltage
Temperature Effect
- ± 0.15% of Span or less for a Temperature Change of 10° C (18° F) - Effect of Ambient Temperature
