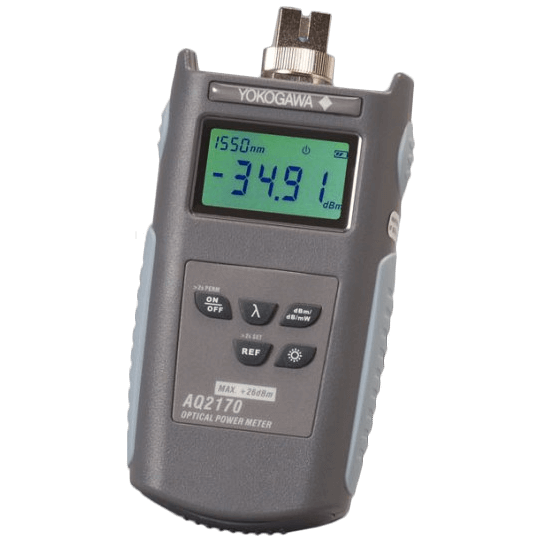

AQ2170 Optical Power Meter
Brand: YokogawaCompact and lightweight
FeaturesTwo versions of Power Meters to suit test application
+10 dBm max. power for Standard version (AQ2170)
+26 dBm max. power for High power version (AQ2170H)
Compact and lightweight
Fits in the palm of your hand or pocket even with the standard protector installed.
Power source
Rechargeable batteries may also be used to reduce the operational cost. Auto power-saving feature also extends battery life.
Basic items included as standard accessories.
- SC, FC or other connector adapter (Removable for convenient access for cleaning) AQ2170: FC,SC, LC, Ferrule2.5φ, Ferrule1.25φ
- Rubber protector to prevent damage when dropped
- Carrying pouch to house unit and connector adapters
Specifications
Brand
Accuracy
- ± 5% at 23° ± 2° C (73.4° ± 3.6° F) - Uncertainty
Approvals & Certifications
- AIST Traceable Calibration Certificate
Approvals & Certifications
- CE
- C-tick
- EMC
- KC
- REACH
- RoHS
- WEEE
Battery Life
- 40 Hours at 23° ± 2° C (73.4° ± 3.6° F)
Connectors
- Optical Connector (FC, SC, LC, Ferrule 2.5 mm, Ferrule 1.25 mm (Standard) FC)
Frequency
- 1 kHz Continuous Wave (CW), CHOP - Modulation
- 2 kHz Continuous Wave (CW), CHOP - Modulation
- 270 Hz Continuous Wave (CW), CHOP - Modulation
Function
- Auto Power Off in 10 minutes No Operation Key
Humidity
- 20 to 80% - Operating Humidity
- 5 to 95% - Storage Humidity
Indication
- Low Battery Indicator - Battery Check
Measuring Time
- 150 milliseconds Approximately - Measurement Interval
Operating Temperature
- -10° to 50° C (14° to 122° F)
Output Noise
- -60 dBm - Noise Level
Power
- -70 to 10 dBm
Power Requirement
- Four AAA Cell Batteries
Resolution
- 0.01 dB (>-60 dBm) - Display Resolution
- 0.1 dB (≤ -60 dBm) - Display Resolution
Sensor, Probe Material
- InGaAs - Photo Detector
Storage Temperature
- -20° to 70° C (-4° to 158° F)
Wavelength
- 850 / 1,300 / 1,310 / 1,490 / 1,550 / 1,625 / 1,650 Nm
