Emerson Numatics Pneumatic cylinder, ASP Series
Images are representations only.

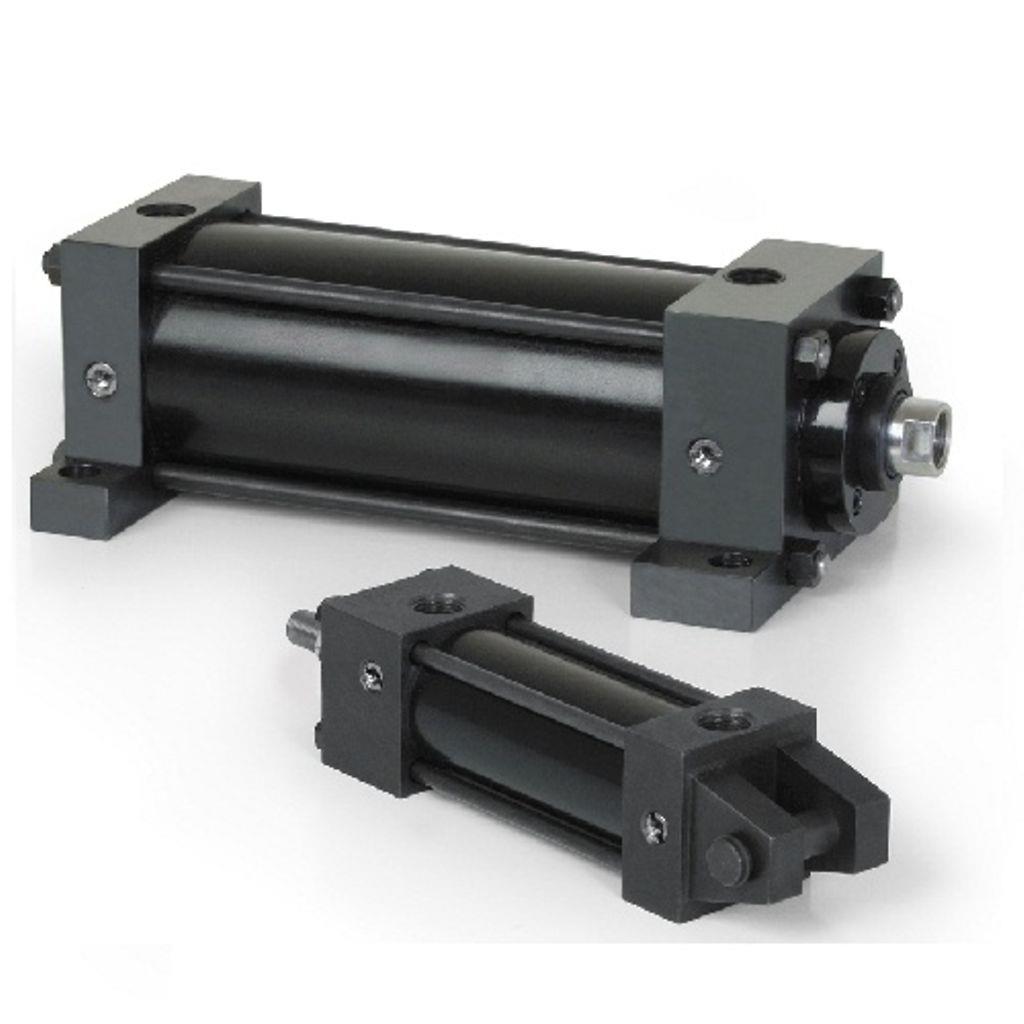

Numatics ASP Series Cylinders

Brand: ASCO

The Numatics ASP Series is a heavy-duty NFPA steel body pneumatic cylinder line designed to meet strenuous applications. The cylinders employ extra-long graphite-filled cast iron rod bushings and standard oversize wear bands (located on the rear of the piston). In addition, a proven “T-seal” piston seal configuration with carboxylated nitrile and self-lubricating PTFE® compound enhances durability. The ASP Series is designed for applications in analytical and diagnostic equipment, bottling lines, commercial kitchen and laundry equipment, and dust collector systems.
Features
  • Competitive interchangeability with heavy-duty steel NFPA cylinders.
  • Larger wear band achieves longer life than competitive cylinders.
  • Floating cushion seal design enables rapid stroke reversal by providing instantaneous full-flow to the piston.
  • Wide bore size and stroke range for a variety of applications.
  • Easy to mount with over 21 available mounting styles.
  • Equipped for magnetic position detectors.

    • Specifications

    Brand

    Bore

    • 1-1/2, 2, 2-1/2, 3-1/4, 4, 5, 6, 8, 10, 12, 14

    Operating Environment

    • Corrosive, Hazardous, Indoor, Outdoor, Washdown

    Stroke

    • 481, 99?, Maximum
