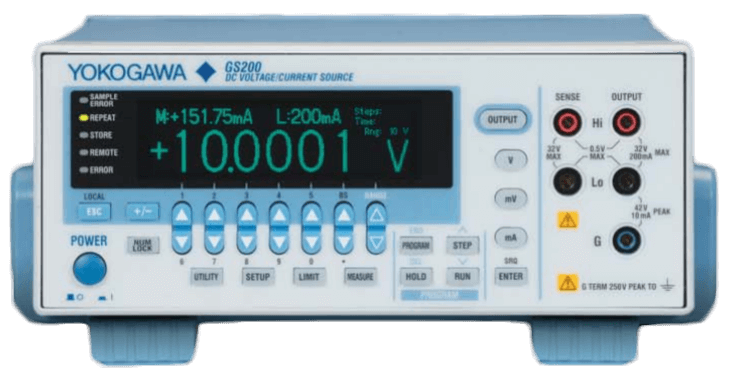

GS200 DC Voltage/Current Source
Brand: YokogawaThe GS200 is a low voltage/current DC source with high accuracy, high stability, and high resolution. With its excellent traceability, stability, and 5-1/2-digit resolution, the GS200 generates extremely low-noise DC voltage and current signals that are required for many applications. Additionally, the optional monitoring feature turns the GS200 into a voltage and current measuring instrument.
Features- Voltage source up to ±32 V and current source up to ±200 mA
- 5-1/2-digit, 120000-count output resolution
- Voltage and current simple monitoring feature (optional)
- Programmable output up to 10,000 points
- Built-in USB mass storage device
- Channel expansion through synchronous operation
Specifications
Brand
Accuracy
- ± 0.016% of Setting + 240 µV (at 10 V Range for One Year) - High Accuracy
- ± 0.03% of Setting + 5 µA (at 100 mA Range for One Year) - High Accuracy
- Current Monitoring During Voltage Generation: ± (0.03% of Reading + 300 µA)
- Current Source: ± (0.03% of Setting + 30 µV)
- Voltage Monitoring During Current Generation: ± (0.02% of Reading + 2 mV)
- Voltage Source: ± (0.025% of Setting + 5 µV) to (0.016% of Setting + 600 µV)
Approvals & Certifications
- AS
- BS
- CSA
- GB
- IEEE
- UL
- VDE
Communication
- DHCP Client
- Ethernet
- FTP Server
- GPIB Conforms to IEEE Standard 488.2-1978
- HTTP Server
- Transmission System: 100BASE-TX
- Transmission System: 10BASE-T
- USB
Consumption
- Maximum
Current
- 0 to 200 mA
Delay Time
- 0 to 999,999 milliseconds (1 milliseconds Resolution) - Measurement Delay
Display
- 256 x 64 Dots Vacuum Fluorescent Display
- 5-1/2-Digits
Electrical Connectors
- BNC Connector
- RJ45 Connector Conforms to IEEE 802.3
- Typical B Connector Conforms to USB 2.0
Frequency
- Rated Supply Frequency: 50/60 Hz
Humidity
- Operating Environment: 20 to 80% Relative Humidity
Input
- Allowable Input Voltage: 0.5 V between the Output & Sense Terminals
- Allowable Input Voltage: 250 V Peak between the Ground Terminal & the Case
- Allowable Input Voltage: 32 V between the High & Low Terminals
- Allowable Input Voltage: 42 V Peak between the Low & Ground Terminals
Load
- Capacitive Load: 10 µF
- Inductive Load: 1 MH
Maximum Current
- Maximum
Maximum Voltage
- Maximum
Operating Temperature
- 5° to 40° C (41° to 104° F)
Output Noise
- 100 µV peak-to-peak (10 V Range, DC to 10 kHz) - Low Noise
- 3 µA peak-to-peak (100 mA Range, DC to 10 kHz) - Low Noise
Resistance
- Input & Output Resistance: ≤ 2 Milliohms
- Input & Output Resistance: ≥ 10 MegaOhms
- Output Resistance: ≥ 100 MegaOhms
- Output Resistance: Approximately 2 ohms
Resolution
- 10 NA (1 mA Range) - High Resolution
- 100 NV (Vdc, 10 mV Range) - High Resolution
- High Resolution Output with ± 120,000 Display Counts
Response Time
- 10 milliseconds or less for All Voltage Source & Current Source Ranges
Stability
- ± 0.001% of Setting + 20 µV (at 10 V Range for One Day) - High Stability
- ± 0.004% of Setting + 3 µA (at 100 mA Range for One Day) - High Stability
Supply Voltage
- 0 to 32 V
- Rated Supply Voltage: 100 Vac (± 10% of Each Rated Voltage, 50/60 Hz)
- Rated Supply Voltage: 120 Vac (± 10% of Each Rated Voltage, 50/60 Hz)
- Rated Supply Voltage: 230 Vac (± 10% of Each Rated Voltage, 50/60 Hz)
Temperature Coefficient
- ± 0.0008% / °C
Update Time
- At Least 60 minutes
