Emerson ASCO Solenoid Valve, 377 Series

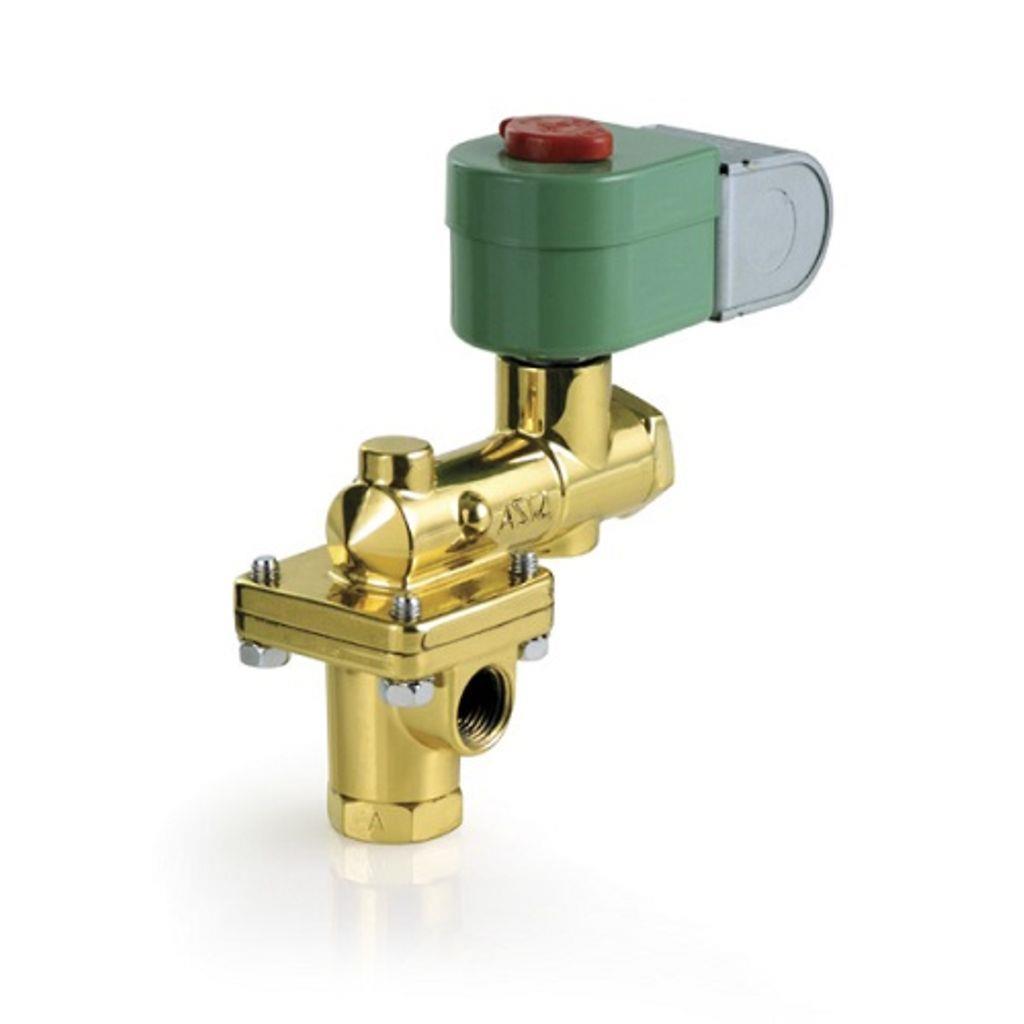

Images are representations only.

ASCO 377 Series Solenoid Valve

Brand: ASCO

The ASCO 377 Series is a line of highly reliable combustion valves for fuel oil media. Their 3-way operation allows diversion of flow from a commercial or industrial oil burner to a recirculatory system and back to an oil tank.
Features
  • General purpose enclosure with brass construction for durability and long life.
  • Handles fuel oil up to 1500 SSU.
  • Zero differential pressure.
  • Rated for pressure up to 100 psi.
  • UL/FM/CSA safety ratings.

    • Specifications

    Brand

    Body Material

    • Brass

    Flow

    • From 0.5 Cv to 1.0 Cv, from 1.0 Cv to 2.0 Cv

    Function

    • 3-Way - 3/2 Normally Closed

    Max. Differential, Max. Operating Pressure

    • Vacuum to 150 psig, Vacuum to 10.3 bar

    Media

    • Fuel Oil

    Operating Environment

    • Indoor, Outdoor

    Pipe / Port Size

    • 1/2, 3/8

    Port Type

    • Female NPT

    Standards & Regulations

    • CSA, FM, Typical 1, Typical 3, Typical 3R, UL

    Valve Actuation

    • Lever

    Voltage

    • 24 AC, 110 AC, 115 AC, 120 AC, 208 AC, 230 AC, 220 AC, 440 AC / 50, 60
