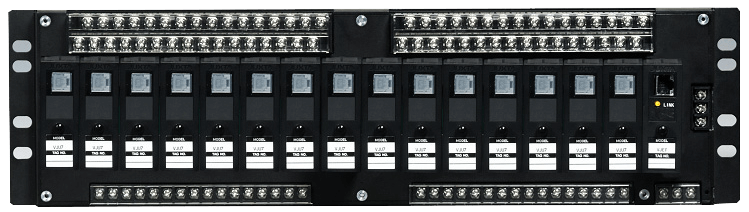

VJCE VJ Mounting Base
Brand: YokogawaThe VJCE is a horizontally installed, side-by-side multiple mounting base that complies with the standard rack-mounting dimensions specified by the JIS/EIA standards. The VJCE base can accommodate up to 16 signal conditioners in the JUXTA VJ series.
Features- Different signal conditioner models in the VJ series can be mixed and housed in the same base
Specifications
Brand
Approvals & Certifications
- CSA1010, Category II (IEC1010-1)
Connection Pin-Out
- 40-Pin Connector
Electrical Connectors
- M3.5 Screw Terminal
Electrical Contacts
- Normally Closed
Enclosure Finish
- Black
Humidity
- 5 to 90% Relative Humidity Non-Condensing
Insulation Resistance
- 100 MegaOhms Minimum at 500 Vdc
Mounting
- Four M5 Screws
- Rack-Mounted
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Supply Voltage
- 1,000 Vac - withstanding Voltage for One Minute between Output-1 & Output-2
- 12-48 Vdc
- 2,000 Vac - withstanding Voltage for One Minute between Input, (Output-1, Output-2)
- 85-264 Vac/dc, 47 to 63 Hz
