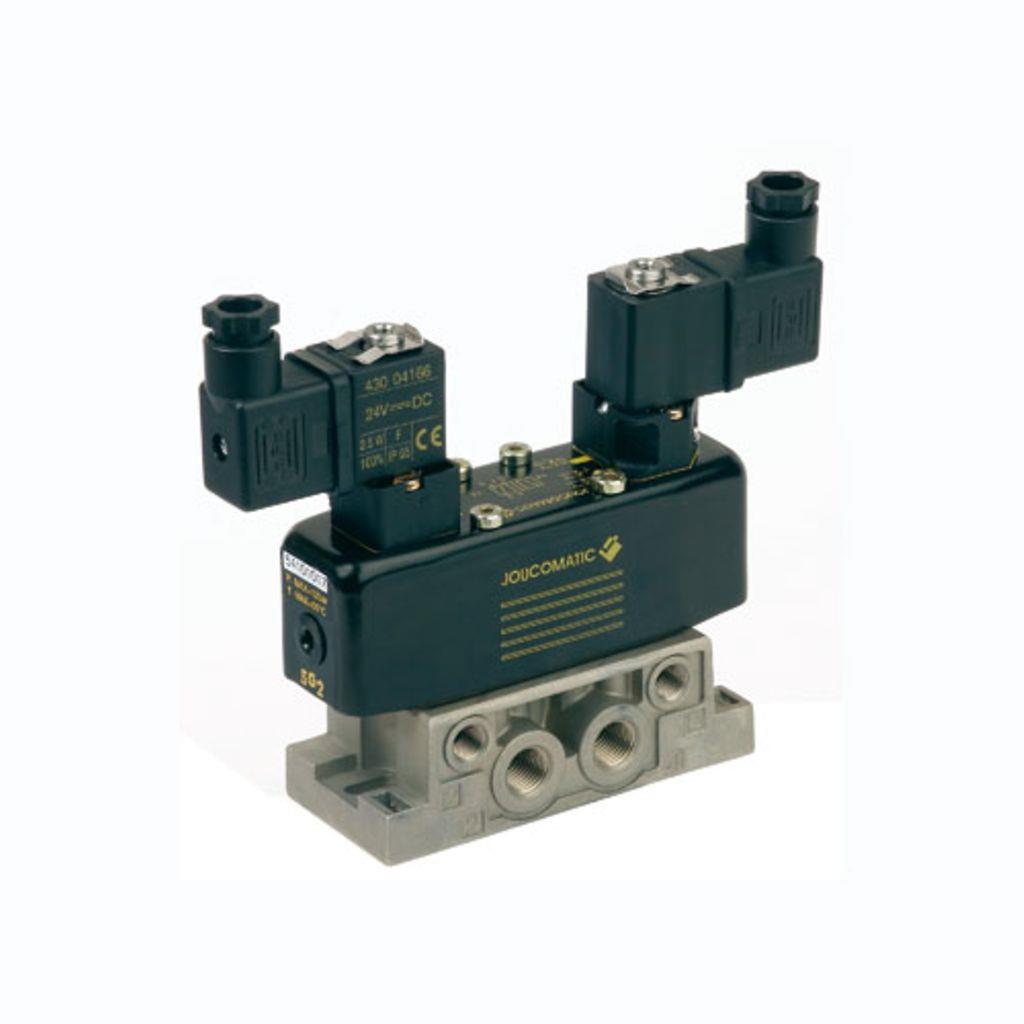

Emerson ASCO Spool Valve, 541 Series
Images are representations only.

ASCO 541 Series Pneumatic Spool Valves

Brand: ASCO

The ASCO 541 Series is a line of pneumatic spool valves with ISO 5599/1 subbase-mounted bodies and modular assembly. The highly reliable valves have a service life of 30 million cycles, making them ideal for applications in the packaging, food and beverage, and life science industries.
Features
  • Modular assembly with joinable subbases permits easy installation and shorter connection time.
  • Wide range of subbases with side or bottom oriented ports for a wide range of applications.
  • Compact versions are available for small space requirements.
  • Option for ATEX zones 1/21, 2/22.
  • Built-in electrical display and protection.

Specifications

Brand

Flow

  • From .86 to 1.73 Kv, from .04 to .2 Kv, from .2 to .43 Kv, from .43 to .86 Kv, from 1.73 to 5.19 Kv, over 12 Kv

Function

  • 4-Way - 5/2, 4-Way - 5/3

Max. Differential, Max. Operating Pressure

  • Vacuum to 10.3 bar, Vacuum to 150 psig

Media

  • Air, Inert Gas

Operating Environment

  • Hazardous

Pipe / Port Size

  • 1/4, 3/8

Port Type

  • G ISO228 / 1-G BSPP

Standards & Regulations

  • ATEX Zone 1-21, ATEX Zone 2-22, IP65, ISO

Valve Actuation

  • Solenoid - Air Pilot
