X019/X020 Mounting Board

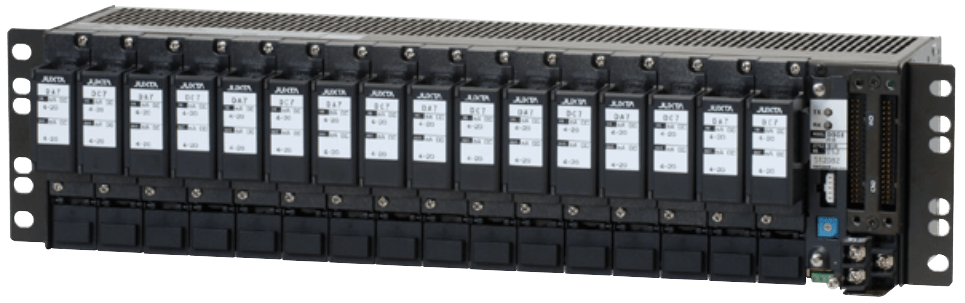

Brand: YokogawaX019 mounting board is used to mount maximum 16 P-series E/P and PIE (PH10, PF1) transducers 1 distributor unit (FTU-16) and 1 power supply unit (FPSU-14/24). Mixture mounting of E/P and P/E transducers is available.
X020 mounting board is used to mount 16 P/E transducers (PF1), 1 distributor unit (FTU-16) and 1 power supply unit (FPSU-14/24).
Specifications
Brand
Ambient Temperature Range
- 0° to 50° C (32° to 122° F)
Dissipation
- 1.6 A, Maximum
Electrical Connectors
- M4 Screw Terminal
Enclosure Finish
- Black
Humidity
- 45 to 85% Relative Humidity
Insulation Resistance
- Over 20 MegaOhms at 500 Vdc between Terminals (Pin & Power), Case & Terminal (Pin), Terminal (Pin)
Power Requirement
- 24 Vdc ± 10%
Supply Voltage
- 1,000 Vac/minute between Terminals (Pin & Power), Case - withstand Voltage
- 500 Vac/minute between Terminal (Pin), Terminal (Pin) - withstand Voltage
