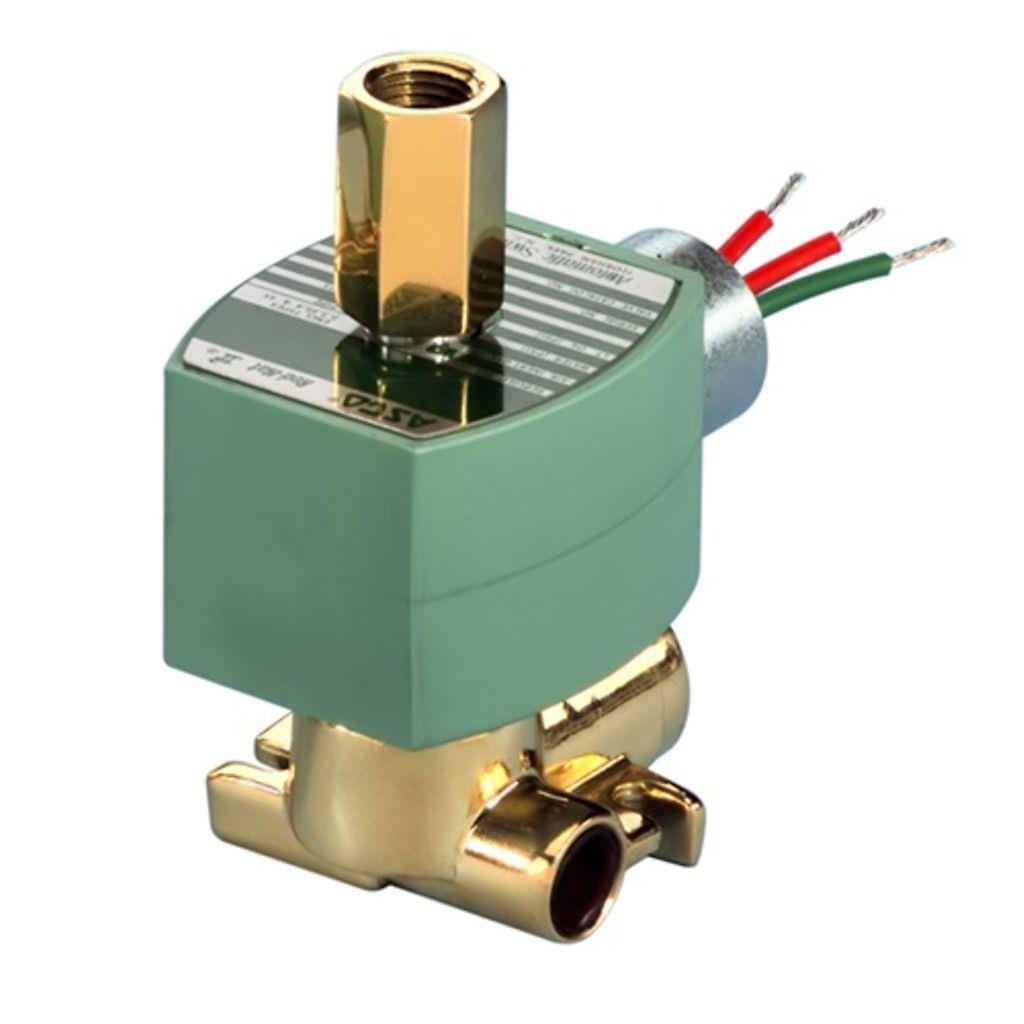

Emerson ASCO Solenoid Valve, 317 Series
Images are representations only.

ASCO 317 Series Quick-Exhaust Solenoid Valves

Brand: ASCO

The ASCO 371 Series is a line of solenoid valves designed for quick venting to 0 psi through the exhaust orifice to quickly shift control valves. The valves are available in low-power, intrinsically safe, voltage-ranging, and harsh environment constructions. The 317 Series is suitable for a wide variety of applications such as automotive, analytic and diagnostic instruments, biofuels, dust collector systems, and heating equipment.
Features
  • RedHat Next Generation version uses electronics technology to manage power, providing less energy consumption and enhanced pressure and flow ratings.

  • Low-power model has one-piece solenoid with highly efficient solenoid cartridge and special low-wattage coil. Designed for automotive automation applications with PLC compatibility.

  • Resilient seated poppets for tight shutoff.

  • Mountable in any position for easy installation.

    • Specifications

    Brand

    Body Material

    • Brass, Stainless Steel

    Flow

    • From 0.1 Cv to 0.5 Cv, from 0.5 Cv to 1.0 Cv, from 1.0 Cv to 2.0 Cv, from .2 to .43 Kv, from .43 to .86 Kv, from .86 to 1.73 Kv

    Function

    • 3-Way - 3/2 Normally Closed, 3-Way - 3/2 Normally Open

    Max. Differential, Max. Operating Pressure

    • Vacuum to 150 psig, 150 to 500 psig

    Media

    • Air, Inert Gas, Light Oil, Water

    Operating Environment

    • Hazardous, Indoor, Outdoor

    Pipe / Port Size

    • 1/4, 3/8

    Port Type

    • Female NPT

    Standards & Regulations

    • Typical 1, Typical 2, Typical 3, Typical 3S, Typical 4, Typical 4X, Typical 6, Typical 6P, Typical 7, Typical 9, UL, ATEX Zone 0-20, Class I Division 1, Class I Division 2, CSA, IEC Ex Zone 0-20

    Valve Actuation

    • Solenoid - Air Pilot

    Voltage

    • 24 AC, 110 AC, 480 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 DC, 12 to 24 DC Voltage Ranging, 24 to 120 AC/DC Voltage Ranging, 100 to 240 AC/DC Voltage Ranging, 125 DC Battery Charging / 50, 50 / 60, 60
