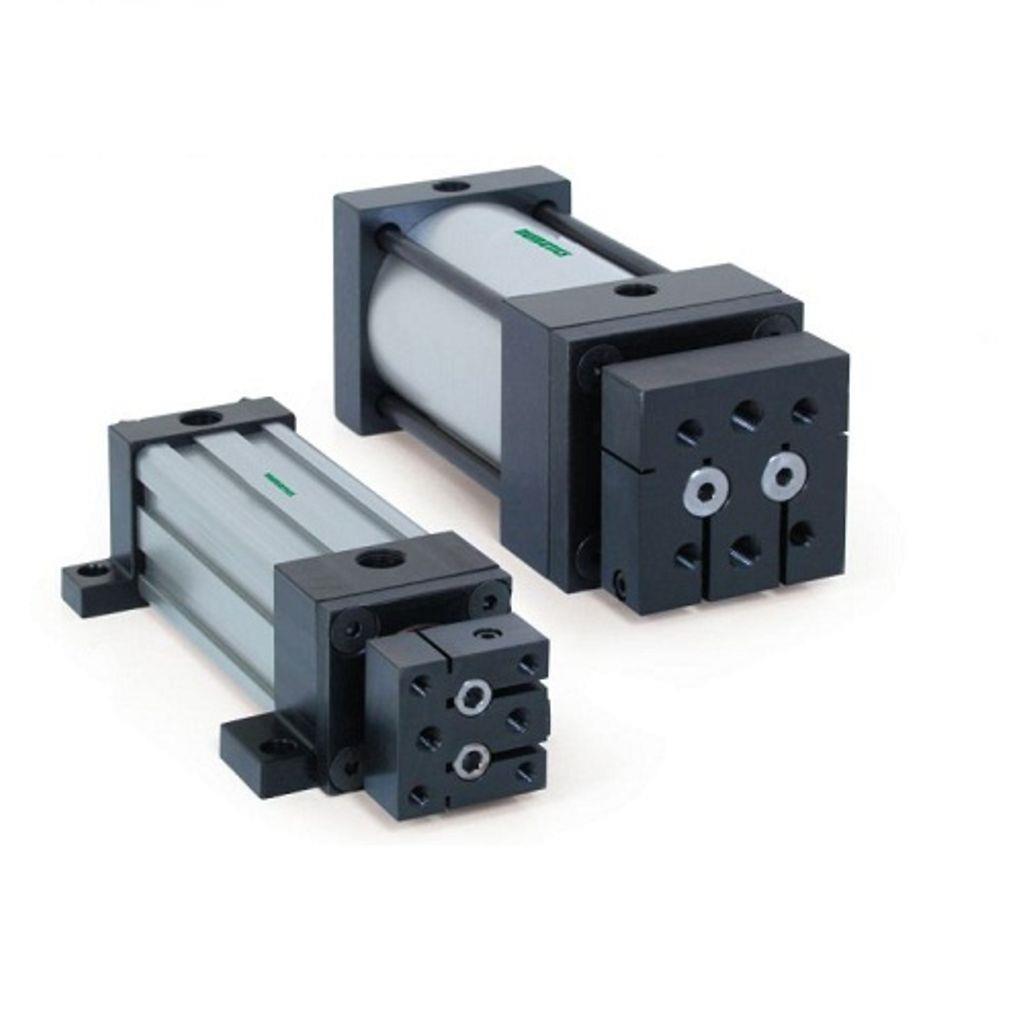

Emerson Numatics Cylinder and Actuator, F Series
Images are representations only.

Numatics F Series Cylinders & Actuators

Brand: ASCO

The Numatics F Series is a non-rotating NFPA-interchangeable pneumatic cylinder line for specific applications where piston rotation is not acceptable. The cylinder´s innovative, dual-rod design provides precision positioning and linear movement - making it ideal for a multitude of high-technology applications.
Features
  • Competitive interchangeability with NFPA Aluminum cylinders.
  • File-hard, high-strength aluminum alloy lobe tube provides a smooth, corrosion-free, abrasion-resistant sealing surface - offering excellent performance in wash-down applications.
  • Larger wear band and unique rod seal/wiper combination achieve longer cylinder life than competitive cylinders.
  • Head and cap are machined from solid aluminum bar and anodized for corrosion resistance. A recess at the piston mating surface creates greater piston area exposed to air for a faster breakaway.
  • Removable close-grain, graphite-filled, cast iron bushing offers the best bearing surface for the hard chrome-plated piston rod. The extra-long bushing offers excellent load bearing characteristics.
  • Floating cushion design gives the fastest stroke reversal possible by providing instantaneous full flow to piston.

    • Specifications

    Brand

    Bore

    • 1-1/2", 2", 2-1/2", 3-1/4", 4"

    Operating Environment

    • Corrosive, Hazardous, Indoor, Outdoor, Washdown

    Stroke

    • 99", Maximum
