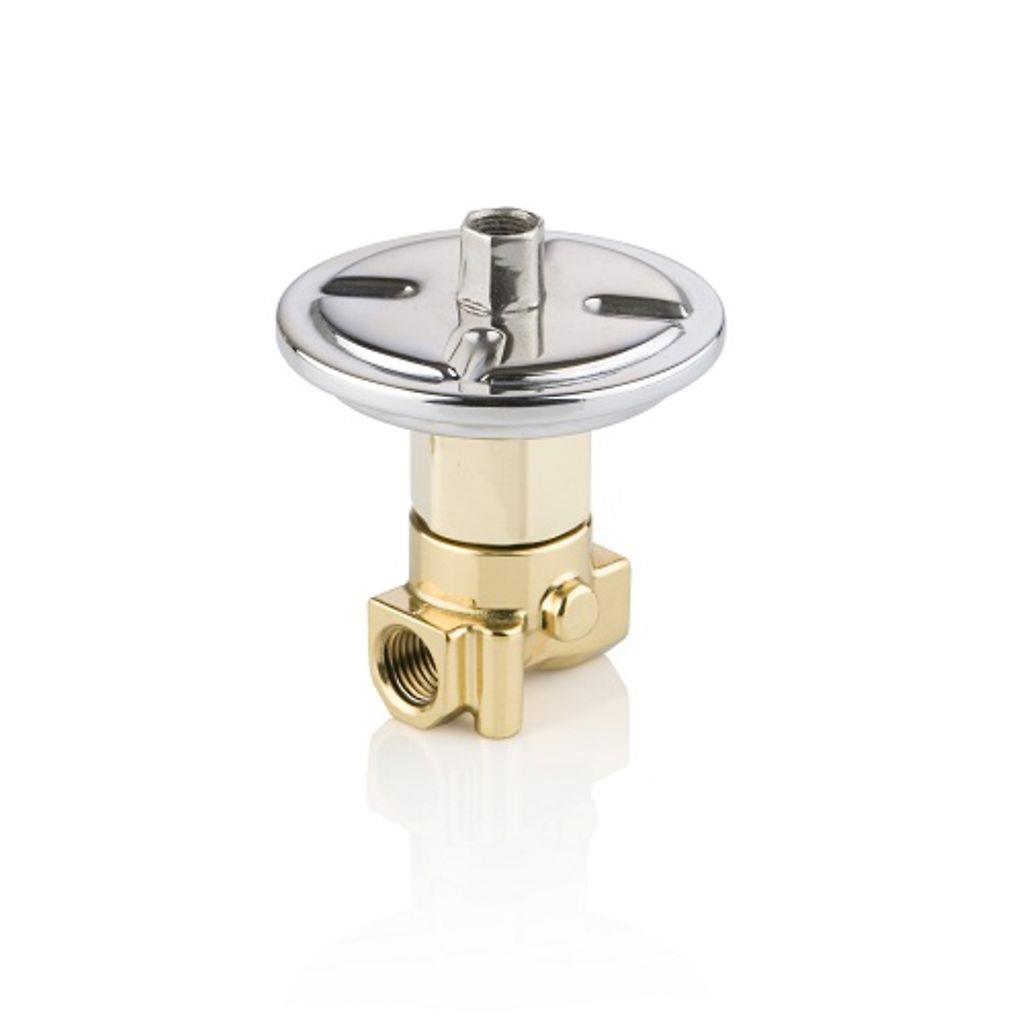

Emerson ASCO Air-Operated Valve, F262 Series
Images are representations only.

ASCO F262 Series Air-Operated Valves

Brand: ASCO

ASCO F262 Series valves are designed to provide long service life handling lubricated air. ASCO F262 is suitable for 3 - 30 psi (0.2 - 2.0 bar) instrument air operation. Their unique sealing members isolate pilot air pressure from mainline fluid. Variations in pilot air pressure will not affect the valves operation. The valves are ideal for applications such as bottling.
Features
  • Normally open or normally closed.
  • Accepts 1/4-inch pipe size.
  • Handles fluids up to 200° F (92° C).
  • Mountable in any position for flexible installation.
  • Rugged brass body constructions with NBR seating.

Specifications

Brand

Body Material

  • Brass

Flow

  • From 0.5 Cv to 1.0 Cv,

Function

  • 2-Way - 2/2 Normally Closed, 2-Way - 2/2 Normally Open

Max. Differential, Max. Operating Pressure

  • Vacuum to 150 psig

Media

  • Air, Inert Gas, Light Oil, Water

Operating Environment

  • Indoor, Outdoor

Pipe / Port Size

  • 1/4

Port Type

  • Female NPT

Valve Actuation

  • Pneumatic - Air Pilot
