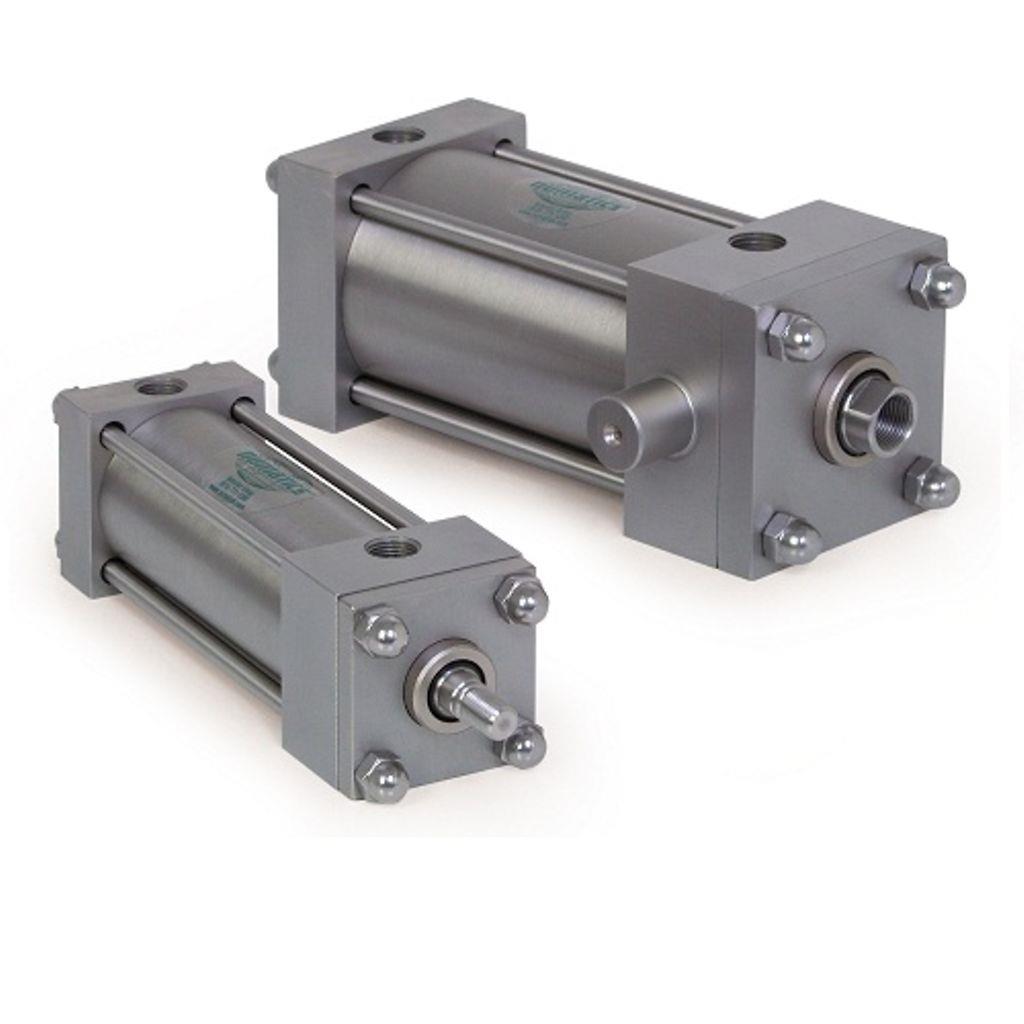

ASCO Numatics S Series NFPA Interchangeable Cylinders

Brand: ASCO

The ASCO Numatics S Series is a stainless-steel NFPA Interchangeable pneumatic cylinder line designed to perform in the toughest wash down applications. Its stainless-steel construction provides outstanding corrosion resistance. The cylinders incorporate an extra-long bushing and standard oversized wear band located on the rear of the piston. In addition, the proven T-Seal piston seal configuration with carboxilated nitrile and self-lubricating PTFE compound provide extended wear and long life.
Features
  • 316 stainless-steel tube provides smooth, corrosion-free operation.
  • Cutting-edge PolyLube™ composite rod bushings are extra-long and specifically designed for applications where corrosion, low-friction, and excellent wear characteristics are desired.
  • Standard rod wiper construction is highly durable polyurethane.
  • Piston rod is machined from 303 stainless steel and is turned, ground, and polished with a chrome-plated surface for maximum rod bushing and seal life.
  • Bushing retainer has a full-face design to minimize corners and crevices, enabling the cylinder to perform in food grade applications.

    • Specifications

    Brand

    Bore

    • 32 mm, 40 mm, 50 mm, 63 mm, 25 mm

    Operating Environment

    • Corrosive, Indoor, Washdown

    Pipe / Port Size

    • 1/8, M5
