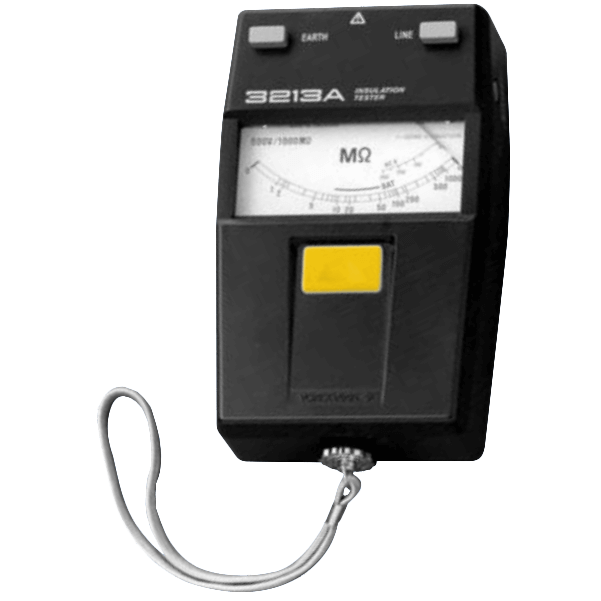

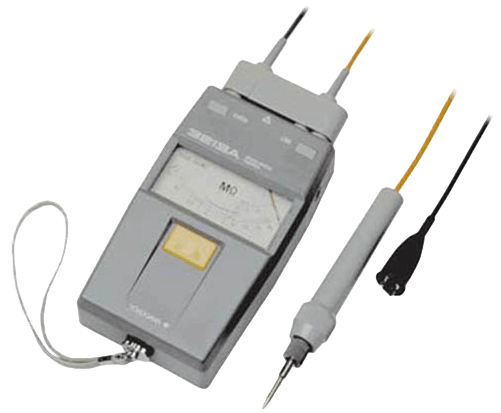

3213A Analog Insulation Tester
Brand: Yokogawa
The 3213A Series Analog Insulation Tester provides a one-touch press-and-lock switch for continuous measurement of insulation of electric equipment or circuits.
This single rating insulation tester is a portable handheld device with a vibration and shock resistant design.
Features- Analog models with single rating
- AC voltage measurement and check live lines such as motive power lines
- One-touch operation press-and-lock switch for continuous measurement
- A wide choice of accessories to meet various testing requirements
- Vibration - and shock-resistant hand-held compact testers
Specifications
Brand
Ambient Temperature Range
- 23° ± 5° C (73.4° ± 9° F)
Current
- 1 mA - Rated Current
Display
- Analog
Function
- Battery Check
Humidity
- 45 to 75% Relative Humidity at 23° ± 5° C (73.4° ± 9° F)
- 70% Relative Humidity, Maximum
- 90% Relative Humidity, Non-Condensing - Operating Humidity Range
Measuring Range
- 0.02 to 2,000 MegaOhms
- 0 to 300 V to AC Voltage Measuring Range
Operating Temperature
- 0° to 40° C (32° to 104° F)
Power Requirement
- 8 AA (R6P) Batteries
Rating
- 1,000 V / 2,000 MegaOhms
- 100 V / 20 MegaOhms
- 250 V / 50 MegaOhms
- 500 V / 1,000 MegaOhms
- 500 V / 100 MegaOhms
Resistance
- 0.1 to 1 MegaOhm - Lower Limit of Measured ohms
- 0.5 to 50 MegaOhms - Central Scale Value
Rotation
- Horizontal 5°, Maximum
Storage Temperature
- -10° to 60° C (14° to 140° F)
Temperature Effect
- ≤ ± 0.7% of Scale Length at Either the Infinite Scale Value or the Zero Scale Value when the Temperature is Changed from 0° to 40° C
- A Change in the Reading at An Ambient Temperature of 23° C (73.4° F) Must Not Exceed ± 5%
Tolerance
- ± 10% of Reading - Second Effective Measuring Range
- ± 10% of, Maximum
- ± 5% of Reading - First Effective Measuring Range
- 0.7%, Maximum
- 1 mA (0 to 20%) - Rated Measuring Current
- 12 mA - Maximum
- 130%, Maximum
