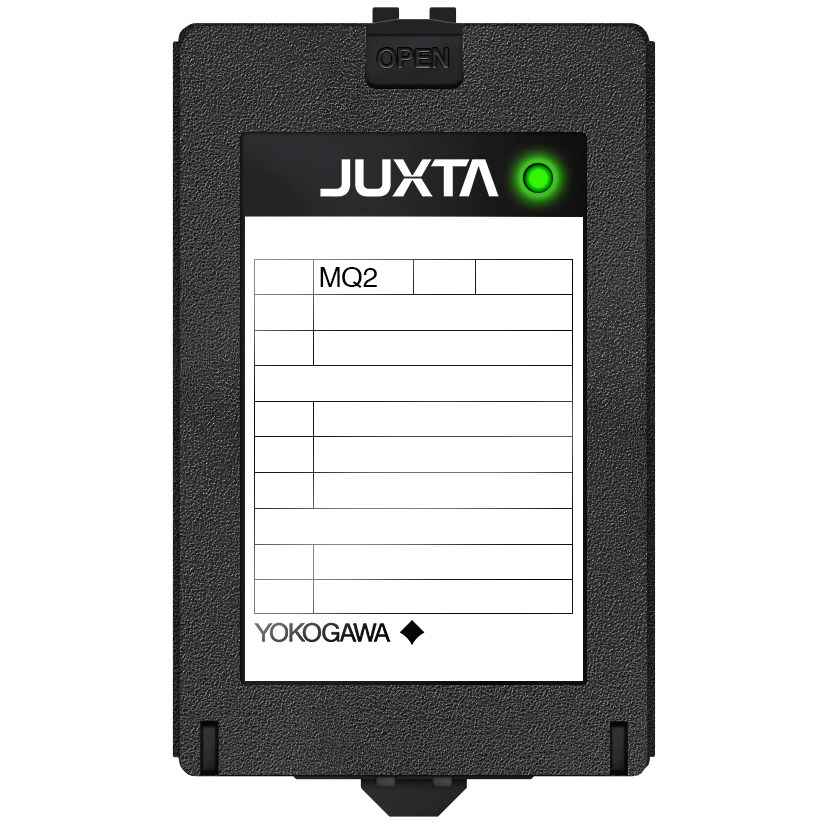

MQ2 Free Range Type Pulse to Analog Converter
Brand: Yokogawa
This µP built-in type converter inputs pulse train signal and converts it into voltage or current signal proportional to its frequency.
Features- Power Supply to Supply 12 V or 24 V to Pulse Generator is Internally Built-in
- As Input Pulse, this Converter can Receive Either Current Pulse, Voltage
- Pulse, Dry Voltage Contact or Open Collector Contact
- Change of Input/Output Ranges, Setting of Input Pulse Width or Low Input Cut Point, Adjustment of Zero/Span, Monitoring of Input/Output can be Done by Handy Terminal Even in the Field
- If it Receives Chattering Signals, Filter can be Set Internally
Specifications
Brand
Accuracy
- ± 0.1% of Span
Current
- 40-60 mA - Current Control Circuit
Dissipation
- 100 mA, 24 Vdc - Current Dissipation
- 20 mA, 110 Vdc - Current Dissipation
- 6 VA, 100 Vdc - Power Dissipation
- 9 VA, 200 Vac - Power Dissipation
Duty Cycle
- Within 50 ± 30% when 100% Input - Duty Cycle for Input Pulse Width
Electrical Connectors
- M3.5 Screw Terminal
Enclosure, Body Material
- ABS Plastic
Filter
- 10 milliseconds - Input Filter
Frequency
- 0 to 100 Hz (Pulse Width more than 3 milliseconds)
- 0.1 Hz to 10 kHz - Input Frequency
Humidity
- 5 to 90% Relative Humidity, Non-Condensing
Input Signal
- -1 to 8 V - Low Level Voltage Pulse
- 2-24 V - High Level Voltage Pulse
Insulation Resistance
- Over 100 MegaOhms (500 Vdc) between Input, Output, Power Supply, Ground
Mounting
- DIN Rail Mounting
- Wall Mounted
Output Signal
- 0-10 V DC
- 0-5 mA DC
- 0 to 100 mVdc
- 0-20 mA DC
Power Supply
- 12 Vdc ± 10% - Transmitter Power Supply
- 170-264 Vac (47 to 63 Hz)
- 24 Vdc ± 10% - Transmitter Power Supply
- 85-132 Vac (47 to 63 Hz)
- 85-150 Vdc
Power Supply Effect
- less than ± 0.1% of Span for Fluctuation of 24 Vdc ± 10%, 85-132 Vac (47 to 63 Hz) / 85-150 Vdc or 170-264 Vac - Effect of Power Voltage Fluctuation
Resistance
- 1 KiloOhm (When Current Pulse Input) - Input Resistance
- 1 to 100 ohms or less - Output Resistance
- 10 KiloOhms or more - High Level: Dry Voltage Contact
- 2 to 250 KiloOhms or more - Permissible Load Resistance
- 200 ohms (When Current Pulse Input) - Input Resistance
- 200 ohms or less - Low Level: Dry Voltage Contact
- 500 KiloOhms or more - Output Resistance
- 500 ohms (When Current Pulse Input) - Input Resistance
- More Than 10 KiloOhms (When Voltage Pulse Input) - Input Resistance
Span & Zero Adjustments
- ± 10% of Span - Output Adjust Range
Supply Voltage
- 1,500 Vac/minute between Input, Output, Power Supply, Ground - withstand Voltage
Temperature Effect
- Less than ± 0.2% of Span for 10° C (50° F) Temperature Range - Effect of Ambient Temperature Change
Temperature Range
- 0° to 50° C (32° to 122° F)
