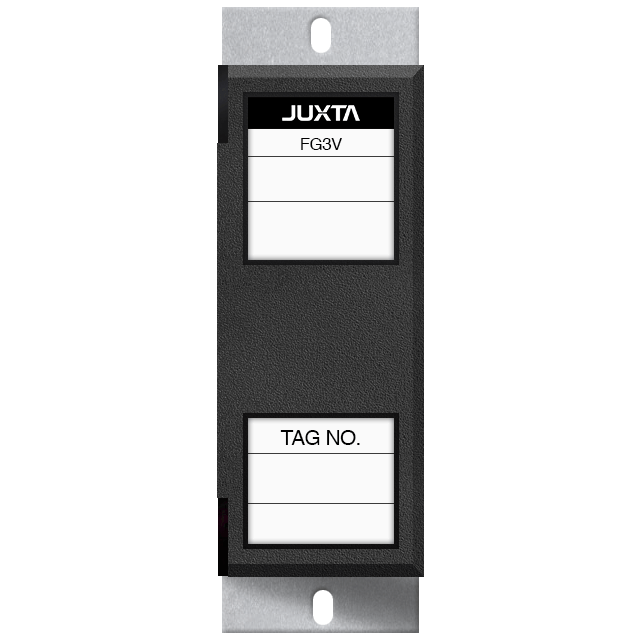

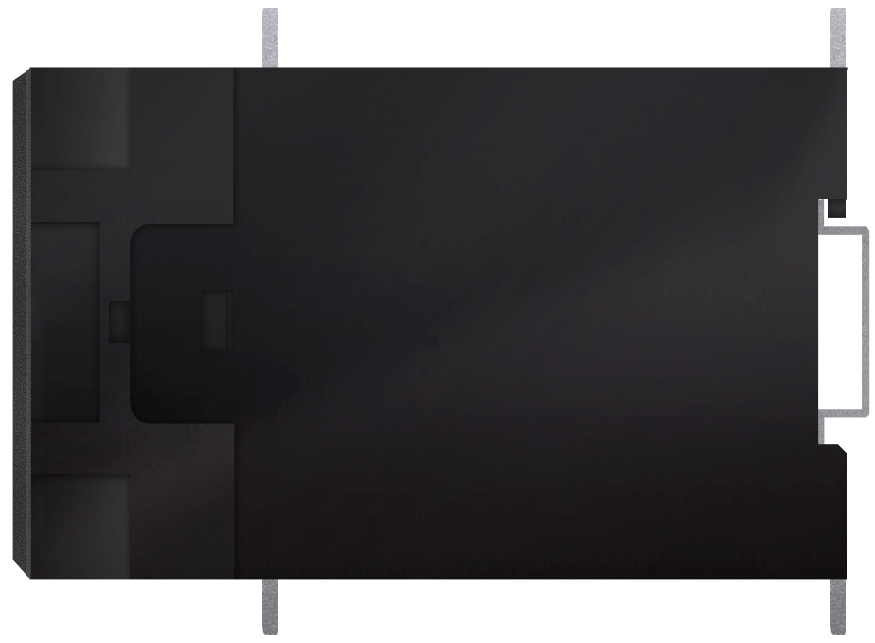

FG3A/FG3V AC Voltage Converter
Brand: Yokogawa
The FG3A/FG3V is a compact, front terminal connection type AC voltage converter that converts AC voltage signals into isolated DC current or DC voltage signals.
Features- AC/DC Conversion is Made by Root Mean Square Value
Specifications
Brand
Accuracy
- ± 0.3% of Span
Consumption
- 60 mA at 24 Vdc (FG3V) - Current Consumption
- 90 mA at 24 Vdc (FG3A) - Current Consumption
Current
- 1-24 mA DC - Span
Electrical Connectors
- M4 Screw Terminal
Enclosure, Body Material
- ABS Resin
Frequency
- 40 to 10,000 Hz - Input Frequency
Humidity
- 5 to 90% Relative Humidity, Non-Condensing - Operating Humidity
Input
- 0 to 150 Vac
- 120% (Continuous) - Maximum
- 200% (One Minute) - Maximum
Insulation Resistance
- 100 MegaOhms or more at 500 Vdc between Input & Output, Output & Power Supply, & Input & Power Supply
Mounting
- DIN Rail Mounting
- Rack-Mounted
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output Signal
- 0-1 mA DC
- 0-10 mV DC
- 0-100 mV DC
- 0-1 V DC
- 0-10 V DC
- 0-5 V DC
- 1-5 V DC
- 1-5 Ma DC
- 2-10 mA DC
- 4-20 mA DC
- 0-20 mA DC
- 0-16 mA DC
- 0-24 mA DC Custom Order
- -10 to 10 V DC
Power Supply
- 24 Vdc ± 10% (Percentage Ripple is 5% peak-to-peak or less)
Power Supply Effect
- ± 0.1% of Span or less for the Fluctuation within the Operating Range of Power Supply Voltage Specification
Resistance
- 1 MegaOhm Approximately - Input Resistance
- 2 to 250 KiloOhms or more - Allowable Load Resistance for DC Voltage Output
- 750 to 15,000 ohms or less - Allowable Load Resistance for DC Current Output
Response Time
- 300 milliseconds, 63% Response (10 to 90%)
Span & Zero Adjustments
- -5 to 5% - Zero Adjustment
- 95 to 105% - Span Adjustment
Supply Voltage
- 0.1 to 150 V to Span (AC)
- 1,500 Vac/minute between Input & (Output & Power Supply) - withstand Voltage
- 10 mV-20 V - Span (DC)
- 500 Vac/minute between Output & Power Supply - withstand Voltage
Temperature Effect
- ± 0.2% of Span or less for a Temperature Change of 10° C (18° F) - Ambient Temperature Effect
Zero Offset
- 0 to 200% - Zero Elevation for Current Signal
- -100 to 200% - Zero Elevation for Voltage Signal
