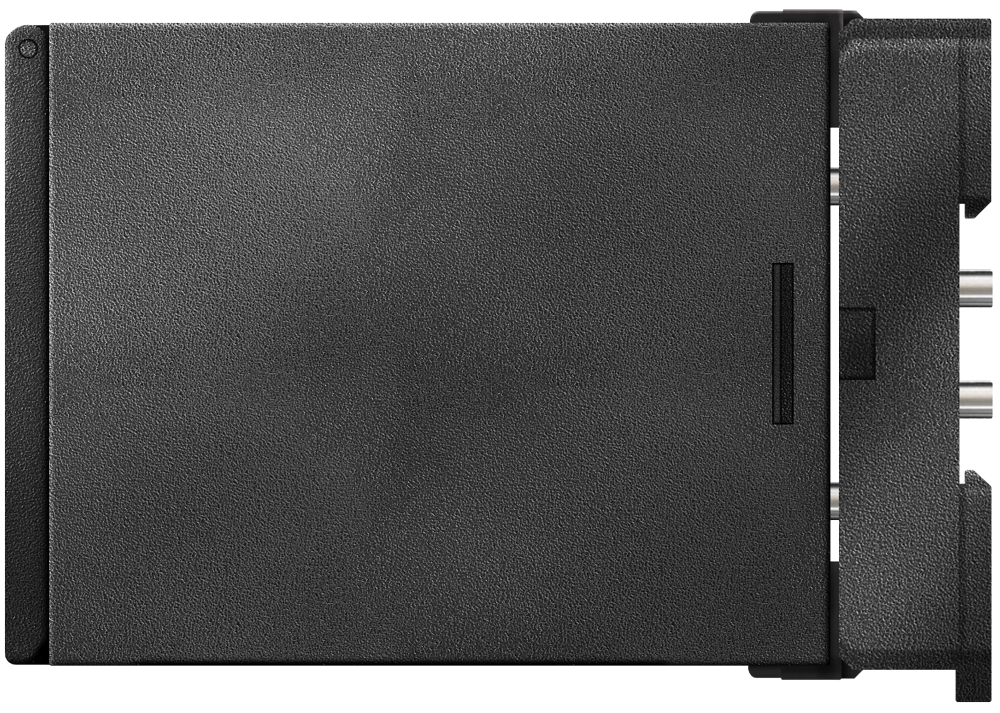

MB1 CT Transmitter
Brand: Yokogawa
This plug-in type model MB1 CT Transmitter receives AC current signal of CT output, etc. and converts it into isolated DC current or voltage signals.
Features- AC/DC conversion is r.m.s
- 2,000 V AC high voltage proof is available upon request
Specifications
Brand
Accuracy
- Within ± 0.5% of Span
Current
- 0.1-5 A AC to Span
- 1-24 mA DC - Span
Dissipation
- 10.5 VA at 200 Vac - Power Dissipation
- 120 mA at 24 Vdc - Current Dissipation
- 6.5 VA at 100 Vac - Power Dissipation
Electrical Connectors
- M3.5 Screw Terminal
Enclosure, Body Material
- ABS Plastic
Frequency
- 40 to 10,000 Hz - Input Frequency
Humidity
- 5 to 90% Relative Humidity, Non-Condensing
Input
- 200% (Continuous) - Permissible over Input
- 500% (During 1 Minute) - Permissible over Input
- less than 0.5 VA - Input Loss
Input Signal
- 0-1 A AC
- 0-5 A AC
Insulation Resistance
- 100 MegaOhms at 500 Vdc between Input, Output & Power Supply & Ground
Mounting
- DIN Rail Mounting
- Wall Mounted
Output Signal
- 0 to 100 mVdc
- 0 to 24 mA DC
- -10 to 10 Vdc
Power Supply
- 12-48 Vdc
- 85-264 Vac, 47 to 63 Hz
Power Supply Effect
- less than ± 0.1% of Span for 12-48 Vdc or 85-264 Vac - Effect of Voltage Fluctuation
Resistance
- 750 to 250,000 ohms - Output Range
Response Time
- 250 milliseconds 63% Response (10 to 90%)
Span & Zero Adjustments
- ± 5% of Span
Supply Voltage
- 1,500 Vac/minute between Input & Output, Power Supply & Ground - withstand Voltage
- 10 mV-20 Vdc - Span
- 2,000 Vac/1 Minute between Input & Output - withstand Voltage
Temperature Effect
- Less than ± 0.2% of Span for 10° C (18° F) Change - Effect of Ambient Temperature
Temperature Range
- 0° to 50° C (32° to 122° F)
Zero Offset
- 0 to 200% - Current Signal
- -100 to 200% - Voltage Signal
