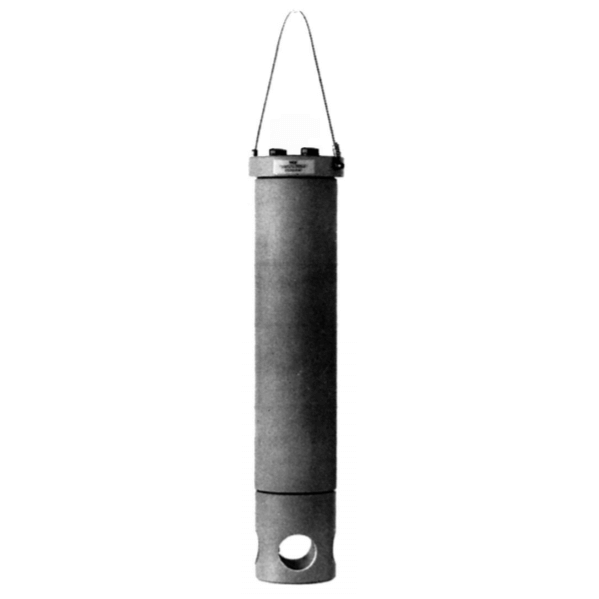

FD20 Immersion Fittings for pH/ORP Measuring Loops
Brand: Yokogawa
The immersion fittings are designed for either pH or ORP (Redox) measurements in tanks, open vessels and drains. They have a "hoisting cable" for easy maintenance.
The program includes fittings for mounting of 1 electrode, 3 electrodes, 4 electrodes or alternatively 3 electrodes and a cleaning system. As standard, the immersion length can be between 0.5 and 2 m. A flange for fixing in tanks, etc. is available on request.
Features- Designed for either pH or ORP measurements in tanks open vessels and drains.
- Hoisting cable" for easy maintenance.
- Pre-selected immersion length.
- Wide choice of construction materials.
- Flange mounting.
- High degree of standardization reduces spare holding requirements.
- Liquid earth pin for stable measurements.
- Chemical cleaning system as an option.
Specifications
Brand
Approvals & Certifications
- 3.1 According EN 10024
BSP Connection
- G 1/2"
Cable Length
- 0 to 32.80 feet (0 to 10 meters)
Cable Material
- Stainless Steel (Twisted) - Hoisting Eye
Enclosure, Body Material
- 316 Stainless Steel
- Polypropylene (PP)
- Polyvinyl Chloride (PVC)
- Polyvinylidene Fluoride (PVDF)
Flange Size - 1-1/4" (DN32)
- 1-1/4" (DN32) - 150# (ANSI)
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ANSI)
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ANSI)
Flange Size - 5" (DN125)
- 5"(DN125) - 150#
Insertion 'U' Length
- 19.69" to 78.74" (0.5 to 2 meters)
Materials of Construction
- Ryton R 4 - Electrode Mounting Sets
Measuring Range
- pH: 0 to 12.9 PH at 25° C (77° F)
Mounting
- Flange Mount
NACE & NIST
- NIST
O-Ring Material
- EPDM
- Silicone Rubber
- Viton
Process Fitting Details
- Immersion Fitting
Sensor, Probe Material
- 316 Stainless Steel (SST Design) - Liquid Earth Sensor
- Titanium (PP & PVDF Design) - Liquid Earth Sensor
Supply Pressure
- psi: 0 to 43.51 (kPa: 0 to 300, bar: 0 to 3)
Temperature Range
- -10° to 110° C (14° to 230° F) - for PP
- -10° to 150° C (14° to 302° F) - for AISI 316 Stainless Steel
- -10° to 160° C (14° to 320° F) - for PVDF
- -10° to 60° C (14° to 140° F) - for PVC
