ASCO Series 220 Steam & Hot Water Solenoid Valves

Brand: ASCO

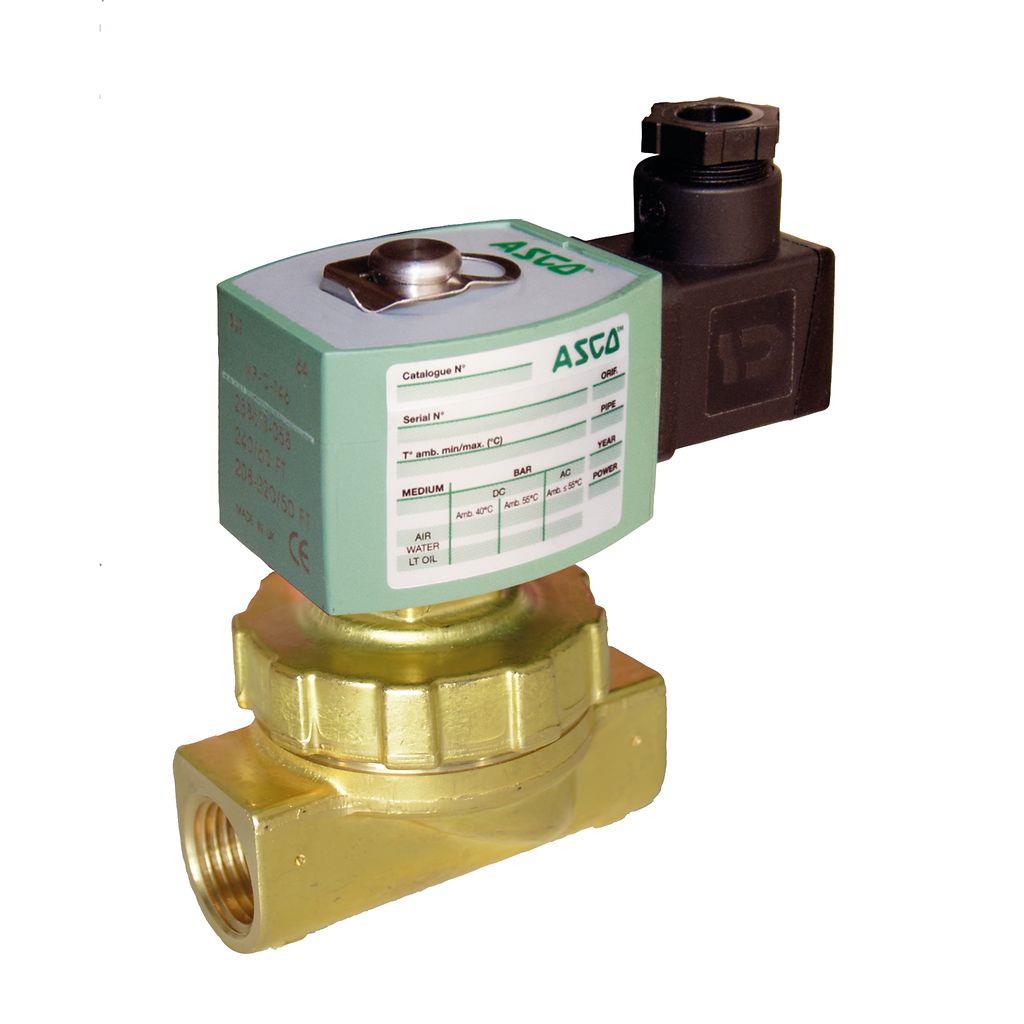

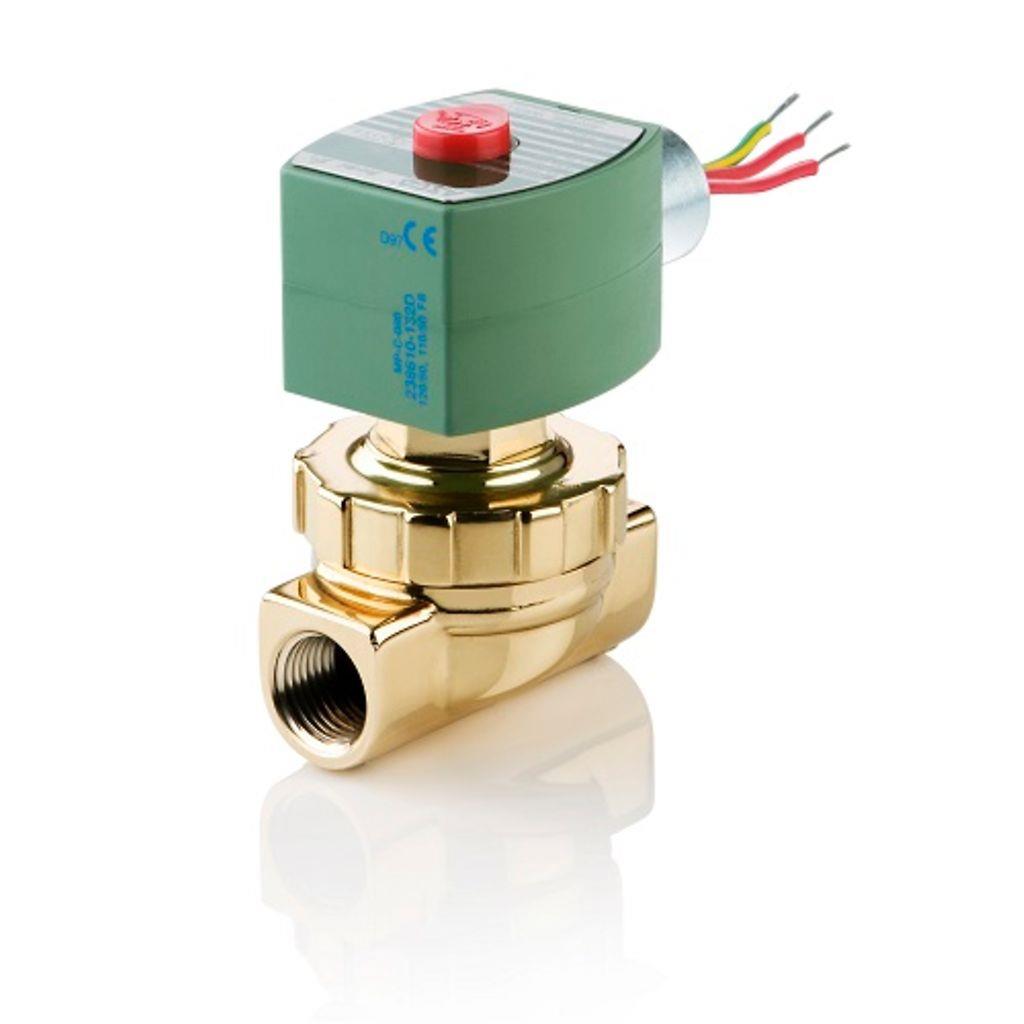

220E.png 220G.png Emerson ASCO Solenoid Valve, 220 Series
The ASCO Series 220 steam and hot water valves provides up to 60% more flow than competitive offerings. That means a 3/4-inch valve flow from ASCO equals the competitors 1-inch flow. The Series 220 floating PTFE diaphragm provides positive sealing and improved durability - up to four times longer than other valves. Its threaded bonnet is easy to remove for quick inspection and serviceability reducing downtime and maintenance costs.
Features
  • Longer life cycles: tested to 1 million cycles on hot water and 50 psi steam; 500,000 cycles on 125 psi steam.
  • Lower power operation: smaller operator reduces energy consumption on 5 psi differential pressure applications.
  • DC constructions have quiet designs that work with 0 psi differential pressure on hot water and 50 psi steam.
  • Inventory reduction: one valve can be used for both steam and hot water applications.
  • Quick delivery with many constructions available on ASCO Express.

    • Specifications

    Brand

    Body Material

    • Brass

    Flow

    • From 2.0 Cv to 6.0 Cv, from 6.0 Cv to 14.0 Cv, over 14.0 Cv

    Function

    • 2-Way - 2/2 Normally Closed, 2-Way - 2/2 Normally Open

    Media

    • Hot Water, Steam

    Operating Environment

    • Hazardous, Indoor, Outdoor, Washdown

    Pipe / Port Size

    • 1/2, 3/8, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2

    Port Type

    • Female NPT

    Standards & Regulations

    • CSA, Typical 1, Typical 2, Typical 3, Typical 3S, Typical 4, Typical 4X, Typical 6, Typical 6P, Typical 7, Typical 9, UL

    Valve Actuation

    • Solenoid

    Voltage

    • 110 AC, 12 DC, 120 AC, 120 DC, 208 AC, 220 AC, 24 DC, 24 AC, 240 AC, 48 DC, 480 AC - 50, 50/60, 60
